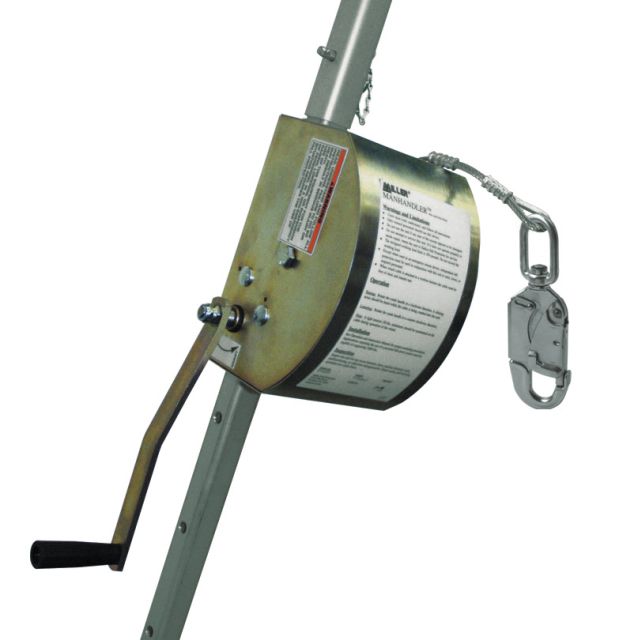

Miller Manhandler Hoist/Winch
The Miller ManHandler Hoist is the perfect solution for a range of applications including confined space entry, rescue, positioning and personnel/material handling.
Features:
- Compact, durable steel construction
- Smooth, controlled winding action
- Effortless lifting and lowering with 5:1 gear ratio
- Anti-backlash crank handle braking system prevents freewheeling
- Built-in mounting bracket
- 400 lb. (181.4 kg) working capacity
Materials:
- Housing: Steel, Yellow Chromate Plating (Zinc)
- Drum: Steel Weldment, Yellow Chromate Plating (Zinc)
- Shaft: 4140 Steel
- Springs: Stainless Steel
- Brake Pawls: Stainless Steel
- Brake Pads: Fiber Composite
- Bearings: Oil Impregnated Bronze
- Hardware: Grade 5, Zinc Plated
- Snap Hook: Drop Forged Steel
- Cable: 3/16” galvanized steel or stainless steel
Technical:
- Maximum Working Load: 350lbs (159kg)
- Brake Systems: Holding and Inertia – friction disk
- Gear Ratio: 5:1
- Retrieval Speed: 20ft/min
- Length: 65ft (20m)
- Weight: 39lbs (18kg)
Certifications:
- Meets OSHA 1910.146 andANSI Z117.1 requirements.
- ANSI Z359-2007 compliant for connectors which meet the 3600lb gate requirements, ANSI Z117.1, and OSHA 1910.146 requirements.
A secondary fall arrest system is recommended for fall protection.
