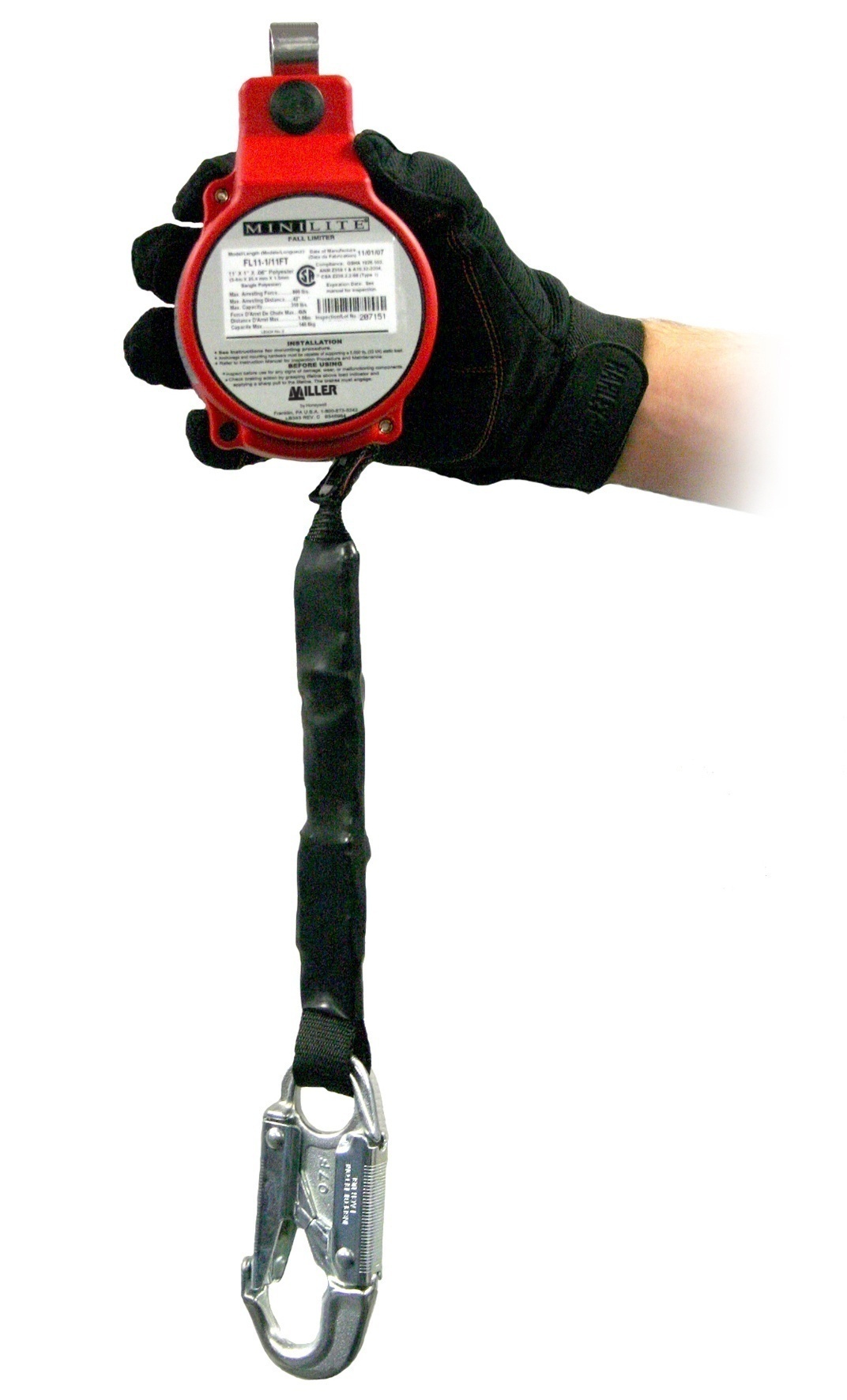

Miller MiniLite Fall Limiter
The Miller MiniLite Fall Limiter is an 11 ft. (3.3 m) self-retracting web lanyard with a quick-activating braking system that limits free falls. In contrast to shock-absorbing lanyards, a Fall Limiter eliminates the need for extended fall distance clearance, minimizing the risk of injuries and making rescue easier.
- Lightweight, compact design that fits in the palm of your hand
- Offers up to 11-ft. (3.3 m) of working capacity
- Quick-activating, high-strength stainless steel braking system
- Corrosion-resistant interior, frame and components
- No annual factory recertification required
- High-impact protective outer cover; visual load indicator
- Available with a variety of integral anchorage connectors
- Rated to 310 lbs. (140.6 kg) capacity
- Rated to 400 lbs. (181.4 kg) capacity when using a SofStop shock absorber (928LS/18INYL)
Materials:
- Housing: Thermoplastic Cover
- Mainspring: Stainless Steel
- Brake Pawls: Stainless Steel
- Main Shaft: Stainless Steel
- Snaphook: Drop Forged Steel
- Lifeline: 1-in. x 06-in. Polyester
- Thread: No.415 6-cord bonded 3-strand polyester
- Carabiner: Zinc plated
Technical:
- Max. Working Load: 310 lbs. (141kg)
- Working Length Capacity: 11 ft. (3.4m)
- Max. Arrest Distance: 39-in. (990.6m)
- Avge. Arresting Force: 1,350 lbs. (6kN) (When tested to ANSI Z359.14)
- Max. Peak Arresting Force: 1,800 lbs. (8kN) (When tested to ANSI Z359.14)
- Max. Peak Arresting Force: 900 lbs. (4kN) (When tested to CSA Z259.2.2)
- Ultimate Strength: 3,000 lbs. (13.34kN)
- Lifeline Tension: 2 lbs. - 13 lbs. (8.9N – 57.2N)
Available Options:
- MiniLite with steel twist-lock carabiner - ANSI Z359 (FL11-1-Z7/11FT)
- MiniLite with steel twist-lock carabiner and swivel shackle - ANSI Z359 (FL11-3-Z7/FT)
- MiniLite with steel twist-lock carabiner and swivel shackle - ANSI A10.32 (FL11-3/11FT)
