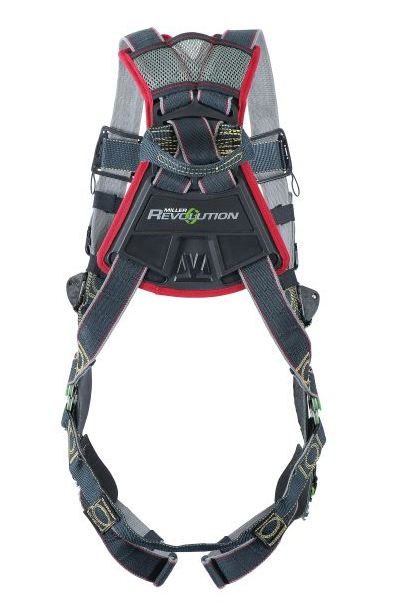

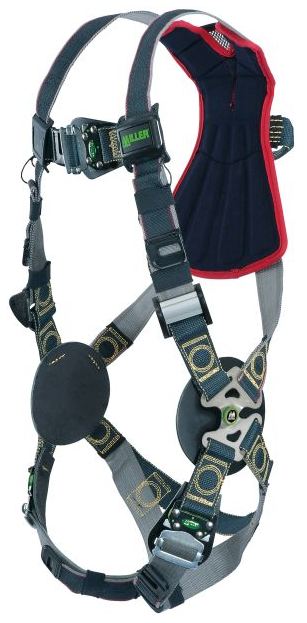

Miller Revolution Arc-Rated Harness - RKNAR-QC/UBK
The Miller Revolution Arc-Rated Harnesses are truly innovative and provide the ultimate in welding protection. A superior combination of Kevlar/Nomex and Miller DualTech webbing provides a 10,000 lb tensile strength with permanent fire retardent properties.
Features:
- Kevlar®/Nomex® Miller DualTech™ webbing – patent-pending 10,000 lb. tensile strength webbing is engineered with permanent fire retardant (FR) properties. The webbing offers the durability and FR properties of Kevlar on the outer side, with softer FR Nomex on the inside of the webbing for greater comfort. The webbing assures arc protection and durability that eclipses any nylon webbing.
- PivotLink™ design allows unmatched freedom of motion and comfort, while the unique Cam Buckles provide easy two-finger adjustment
- Leather insulators under all metal hardware offer additional protection for the worker
- The Kevlar web loop on the back pad allows for a “metal-less” connection when used with a Kevlar shock-absorbing lanyard with a choke-off loop
- All Miller Revolution Arc-Rated Harnesses have bright red binding on every pad, making them easily identifiable as an arc-rated product
- Sizes: S/M, L/XL, 2X/3X
Materials:
- Webbing: Kevlar/Nomex
- Elastic Keepers: Kevlar, Elastic
- Thread (Stitching): Kevlar, Polyester
- Web Loop: Kevlar
- Rescue Loops: Kevlar
- Insulators: Leather
- Buckles: Clear Chromate Finished Carbon Steel
- Grommets: Brass
- Labels: Valeron
- Cam Buckle: Glass-filled Nylon, Aluminum, Stainless Steel
- Pivotlink: Clear Chromate Finished Carbon
- Steel, Stainless Steel
- Back, Belt, Shoulder
- Pads: Kevlar, Urethane
- Label Pack: Evoprene, Nylon
Technical:
- Max. Working Load: 400lbs (181.4kg)
- Webbing Min.Tensile: 7000lbs (31kN)
- D-ring Min. Tensile: 5000lbs (22kN)
- Buckle Min. Tensile: 4000lbs (18kN)
Certification:
- Meets stringent ASTM F887-05 Arc-Flash standards and all OSHA, ANSI and CSA requirements.
