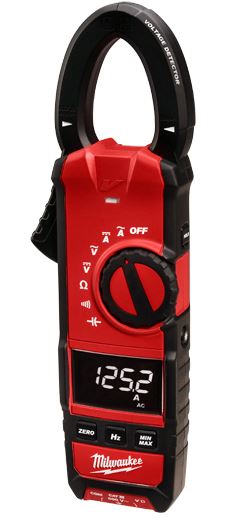

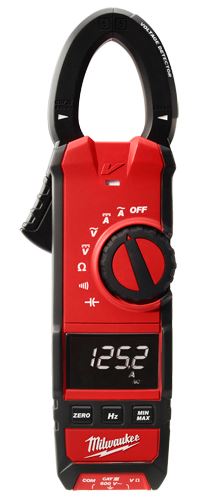

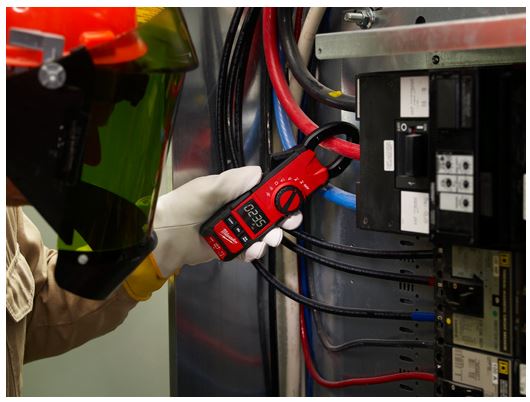

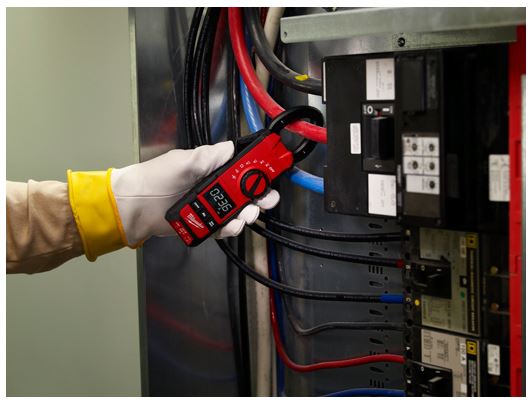

The Milwaukee 2237-20 Clamp Meter measures up to 600 amps AC and features a large, 1.3-inch jaw opening. This meter is ideal for professional residential and commercial electric, industrial, and service work, including testing electrical-panel and motor currents.
FEATURES
- Measures up to 600 amps AC/DC, Large 1.30” jaw opening
- Thin Jaw Profile for easier wire measurement in panels or in bundles
- Wide Voltage range to 600 AC/DC volts
- True-RMS for accurate measurement in all applications
- Built-In Voltage Detector and LED Work Light
- Frequency Measurement
- High Contrast, White on Black Display with Backlight for easy reading
- Rugged over-molding increases durability and user grip
- CAT III 600V for increased safety
SPECIFICATIONS
- TRMS: Yes
- JAw Size: 1.3"
- Safety Rating: CAT III 600V
- Current AC: 600A
- Current AC/DC: 600A
- Voltage AC/DC: 600V
- Frequency: Yes
- Resistance: 6 kΩ
- Continuity: Yes
- Capacitance: Yes
- Hold: Yes
- Display Backlight: Yes
- Display Type: High Contrast White on Black
- Non-Contact Voltage: Yes
- LED Work Light: Yes
- Rugged Over-molding: Yes
- Tool Warranty: 5 Years
- Indication: Visual (for NCVD)
- Switch Type: Dial
- Battery Type: Alkaline (AA)
- Length: 9 1/2"
