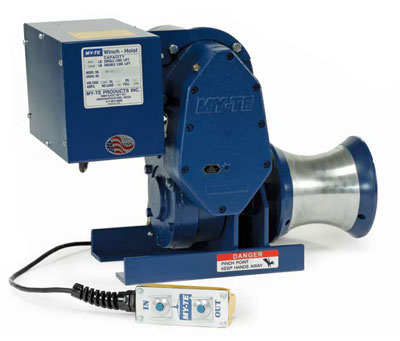

My-Te 30-12 Utility Capstan Electric Winch-Hoist - 12 Volt DC

My-te’s flagship capstan winch-hoist is a tough, highly portable unit that is perfect for the likes of utility truck installation, overhead line crews, tower and antenna erection, and transformer replacement. It maintains an 800-lb single-line or 1,600-lb double-line lift capacity with a capstan rope drum. Choose from a 10' pendant hand control (741040) or foot control (741041) to operate the hoist.



Features:

• 800-lb single-line or 1,600-lb double-line lift
• 12 Volt permanent magnet motor
• Worm gear reduction for positive load holding
• Portable and rugged
• 10' pendant hand or foot control
• Capstan rope drum
• Frictionless bearings
• Heavy-duty angle base drilled for four 1/2" bolts (9/16" mounting holes) with no welding required
• Fully sealed aluminum housings, with precision-cut gears, run in an oil bath
• Hardened steel worm and forged bronze worm gear holds load in position when stopped.
• Stress-proof drum shaft
• Frictionless bearings
• 175:1



Specifications:

•  Power:
• Reversible permanent magnet 12 Volt motor
• 10 amp – No load
• 100 amp – Full load
• Speeds:
• 20 FPM: No-load drum speed
• 15 FPM: 500 lbs
• Duty Cycle:
• 25% – 15 min/hr when operating at full load
• Hoisting Rope: Maintain at least three wraps of rope on capstan drum when in use. Heavier loads may require four wraps of rope.



Applications:

• All My-Te winches and hoists are designed for material handling usage only.
• Utility truck installation
• Overhead line crews
• Tower and antenna erection
• Transformer replacement
