ODM Complete Inspection and Single Mode Test Kit

*Please CLICK HERE For Updated Option.

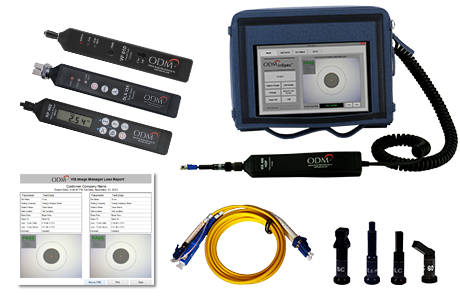

The ODM TTK 650 offers technicians and contractor with high-end hardware and software to ensure compliance in single mode fiber optic-based telecommunications. This kit includes everything you need to inspect, clean and test fiber optic cables. The proprietary software even allows for professional closeout reporting.

The VIS 400 HD probe connects with the included 8” Windows OS tablet to allow testers to evaluate and grade connector endfaces using IEC standards before joining fibers. Manual and automated analysis modes guarantee clean and reliable optical connections.To properly clean connector endfaces that fail to meet the IEC standard, the TTK 650 contains a complete system of “one-click” dry cleaners and the SqR Cleaning Pad with Fiber Wash Pen for wet/dry cleaning. When used correctly, these tools can clean endfaces to meet the IEC 61300-3-35 industry standard.

The RP 460 Optical Power Meter, when used in conjunction with the DLS 355 Light Source and included jumpers, offers complete loopback dB loss readings for the most commonly used single mode wavelengths for wireless carriers. The Optical Power Meter can be used in conjunction with inSpec™ software to provide live readings for image archiving and closeout loss reports.

The VF 610 Visual Fault Locator provides a 635nm red laser source that allows technicians to view bends or breaks in optical fiber. Broken fibers must be removed from fiber optic systems to ensure full functionality.

Features:

• USB connectivity to included 8” tablet allows for automated and manual fiber endface inspection
• Comprehensive PASS/FAIL analysis compliant with IEC 61300-3-35 industry standard
• Included red laser allows observation of bends and breaks in fibers under test
• Automated Pass/Fail Inspection
• dB Loss/dBm Testing
• Cleaning Tools
• Closeout Report Software
