Optical Power Meter
• 850, 1300, 1310, 1490, 1550, 1611, 1625nm wavelengths
• Automated Wave-ID feature compatible with DLS 650/DLS 655 light sources
• 1000 data point storage per wavelength
• Live data stream or data point transfer to ODM software

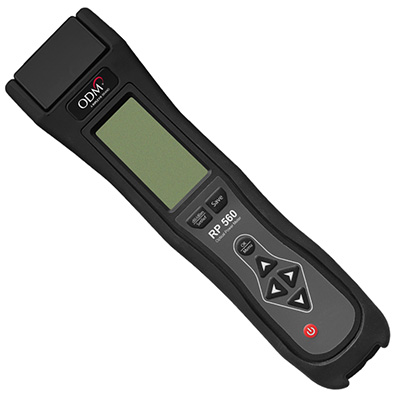

The RP 560 optical power meter provides users with a simple platform for testing fiber optic cables at all connection points in the network. A highly-navigable interface and Bluetooth functionality help to expedite the fiber testing process for busy technicians.
Capable of displaying and testing 2 wavelengths at once, the RP 560 cuts dB loss testing time in half when used with the DLS 655 laser source or DLS 650 LED source. The power meter automatically detects the wavelength output from the light source and displays the output power/loss for each detected wavelength.
Saving data from multiple sites is as simple as identifying a new folder within the RP 560 menu and beginning the test process. All data points are automatically saved into the selected folder, so multiple sites can be tested and saved before data needs to be offloaded for reporting.
For users operating in a benchtop or manufacturing environment, the data from the RP 560 can be mirrored to and controlled by a Windows, Android, or iOS device using USB (Windows only) or Bluetooth. Live-streaming the data to a computer or tablet allows fast sharing and report creation.
Detector Type: InGaAs
Measurement Range: +6 to -70dBm
Wavelength Range: 850nm to 1650nm
Selectable Wavelengths: 850 / 1300 / 1310 / 1490 / 1550 / 1611 / 1625 nm
Resolution: 0.01dB
Absolute Accuracy: ± 0.25 dB (0dBm, 22C to 25C)
Optical Interface: Universal 2.5mm (Additional Adapters Available)
Display: LCD
Tone ID: 2kHz, 1kHz, 270Hz
Storage: 1000+ Measurements, 4 storage folders
Data Transfer: Micro USB or Bluetooth
