Model#: C-PZ-P36BA10
Stock#: C-PZ-P36BA10
$144.95 to $174.95
THIS ITEM SHIPS FOR FREE!
Please select an option below
Model#: C-PZ-P36BA10
Stock#: C-PZ-P36BA10
$144.95 to $174.95
THIS ITEM SHIPS FOR FREE!
Please select an option below
Features:
Specifications:

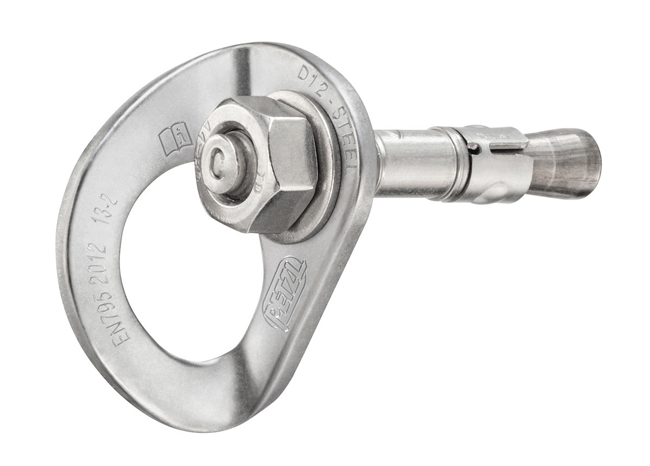

The Petzl COEUR Steel Bolt is a standard steel anchor composed of a COEUR STEEL hanger, a bolt, and a nut. It is designed for interior uses or non-permanent installations. It is available in 10 and 12 mm diameters.
| Reference | P36BA 10 | P36BA 12 |
| Diameter | 10 mm | 10 mm |
| Certification | - | EN 959 |
| Weight | 110g / 0.24 pounds | 135g / 0.30 pounds |
| Drilling Depth | 8.5cm / 3.35 inches | 9.5 / 3.74 inches |
| Drilling Diameter | 10 mm | 12 mm |
| Resistance to cutting on concrete 50 MPa | 23 kN | 25 kN |
| Pull-out strength in concrete 50 MPa | 15 kN | 18 kN |
