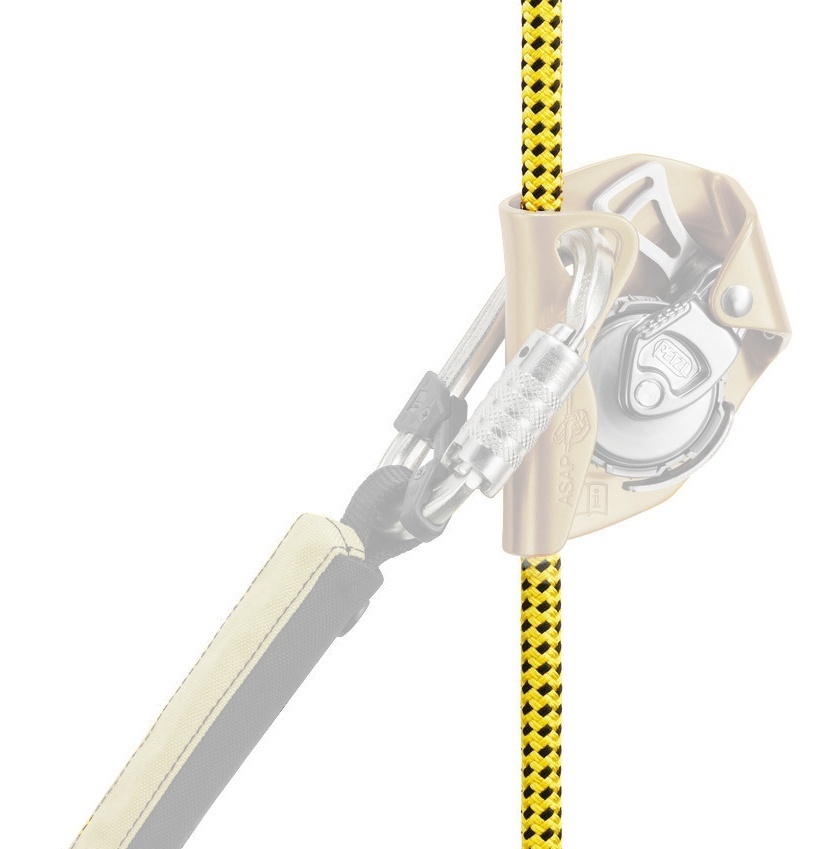

The Petzl RAY Rope with One Sewn Termination is designed for use with the ASAP (international version) or ASAP LOCK mobile fall arrester. The standard diameter ensures a good grip for easier handling. The rope has a low stretch when put under tension, allowing it to meet the requirements of U.S. fall protection standards. The sewn termination with a protective sheath helps keep the connector in position and facilitates handling. The rope is constructed entirely of polyester to ensure great flexibility over time under any conditions like water, dust, and mud.



• Low stretch under tension, meeting U.S. fall protection standards

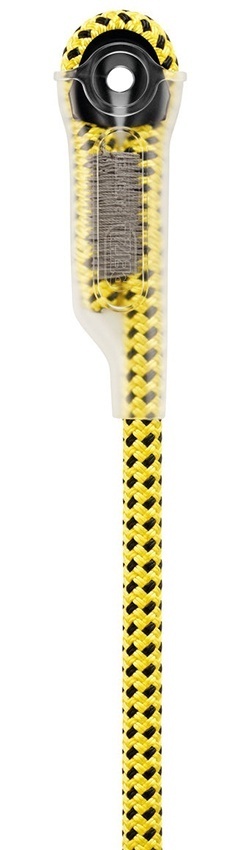

• Sew termination with a protective sheath that keeps the connector in position and facilitates handling

Specifications:

• Diameter: 12 mm
• Material: Polyester
• Weight per meter: 106 g
• Strength-tied with a figure-eight knot: 15 kN
• Strength with sewn termination: 22 kN
• Construction: 24 carrier
• Percentage of the sheath: 44 %
• Static elongation under 4 kN load: 3 %
• Certifications: ANSI Z359.15 (when used with an ASAP international version or ASAP LOCK mobile fall arrester)

• 25 ft: R091AA00
• 50 ft: R091AA01
• 75 ft: R091AA02
• 100 ft: R091AA03
• 200 ft: R091AA04
