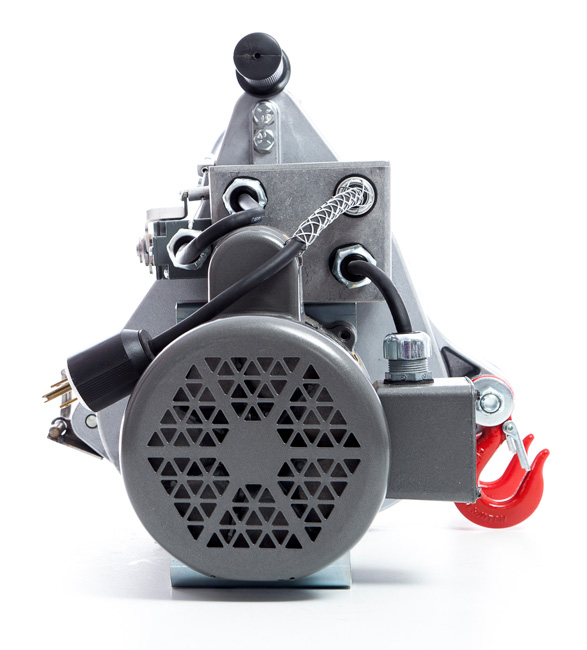

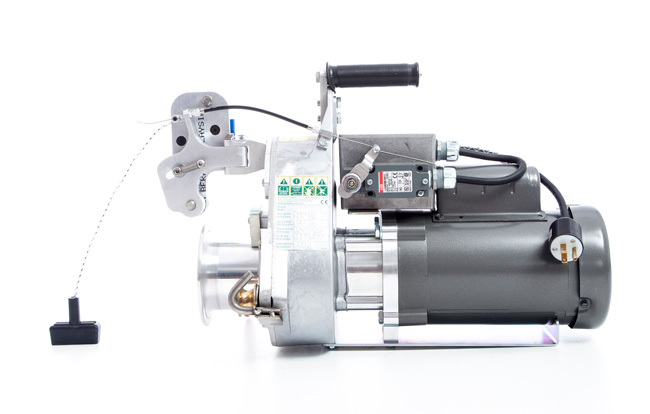

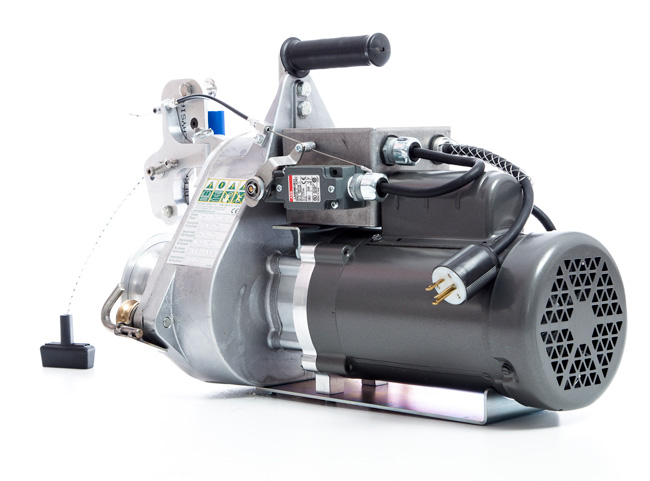

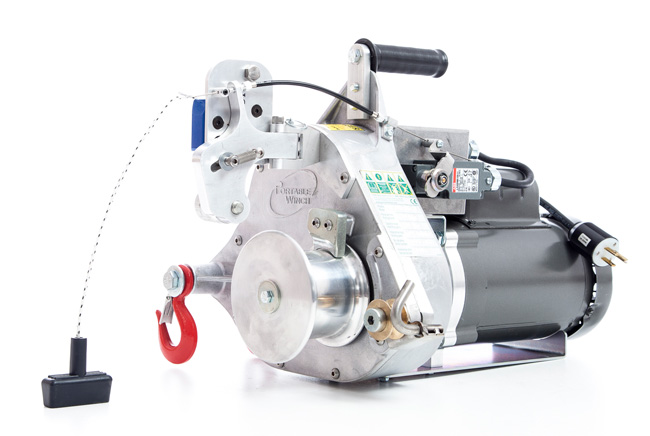

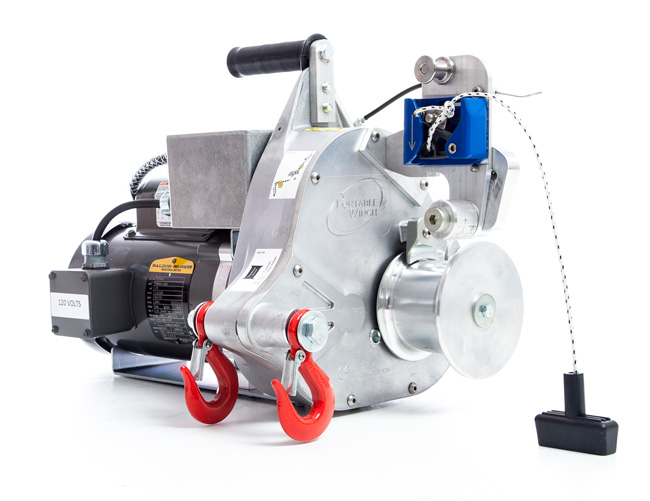

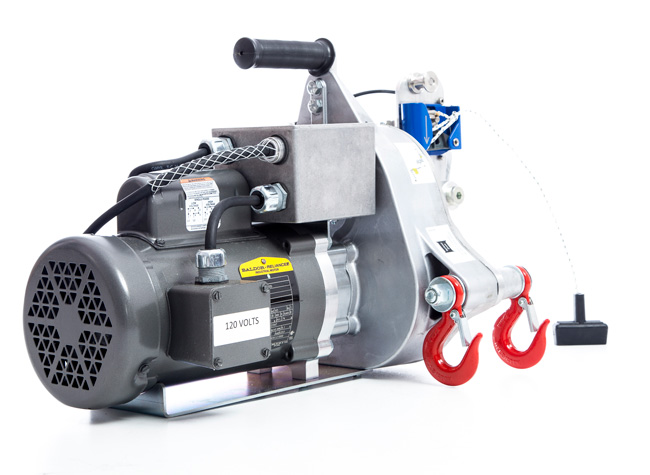

Portable Winch AC Electric Pulling/Lifting Winch 60Hz/120V

Features:

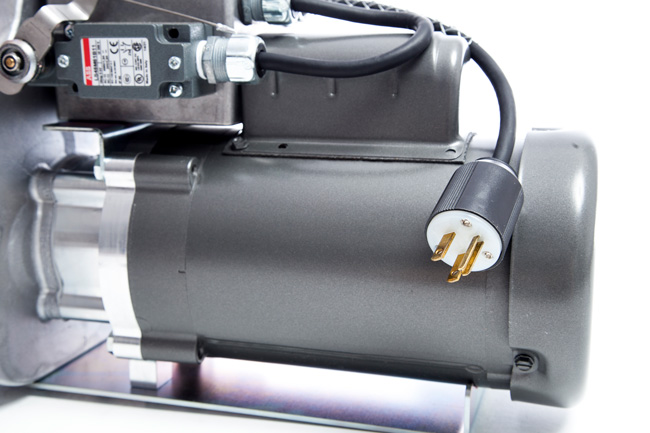

• AC Electric Baldor TEFC 115/230 VAC-1 ph - 3/4 HP -60Hz
• Aluminum Alloy Gear Box
• Heat-treated 3 Stage Spur Gears
• Ball-bearing Mounts
• Oil Bath Lubrication
• Work Cycle:
  • 25% (15min per hour)
• For use with double-braid polyester rope
• 12mm to 13mm
• Polyester Sling Included
• 60 mm x 2 m

Specifications:

• Dimensions (inches):
• Weight: 42 pounds
• Length: 19-7/8
• Width: 14-5/8
• Height: 14-¼

The Portable Winch AC Electric Pulling/Lifting Winch was designed for lifting applications ideal for a variety of uses on a job site where a traditional gas-powered motor cannot be used. With a single line, it can lift a load of 550 pounds with an integrated rope grabbing system. Powered by an AC Electric Baldor TEFC 115/230 VAC motor. Capable of pulling up to 1805 pounds at 29-feet per minute with the standard 85-millimeter drum. A low stretch double braided polyester with eye splice, and thimble is mandatory for lifting applications. It can be used with any length of double-braid polyester rope diameter 12mm to 13mm.

Click here for more options for drum size.
