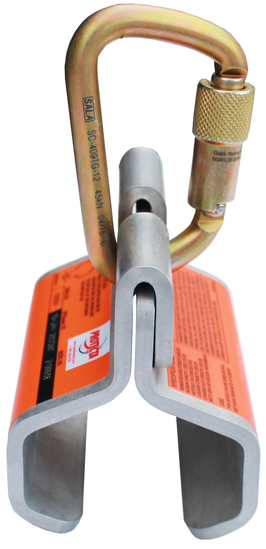

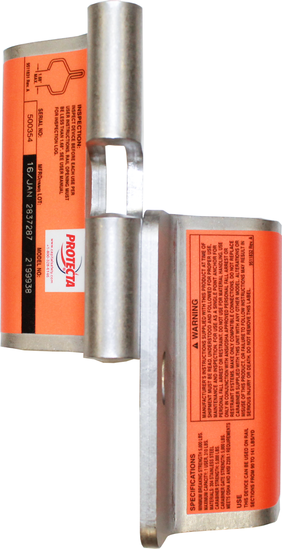

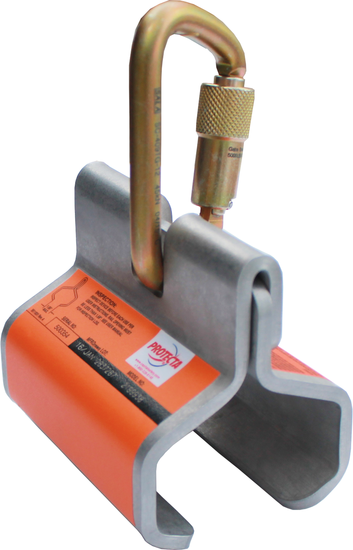

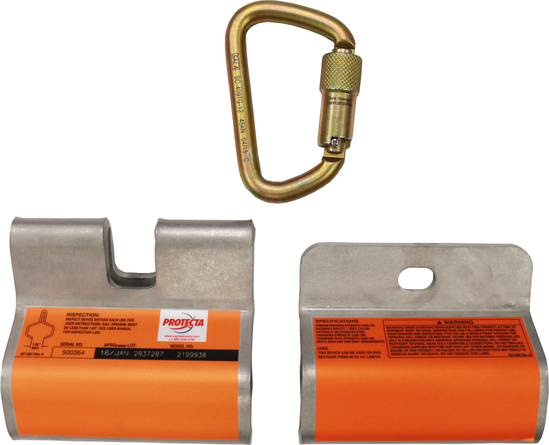

Protecta RailDog Hi-Vis Sliding Rail Anchor

The Protecta Raildog Hi-Vis Sliding Rail Anchor is for use on rails that are 2-3/4" to 3-1/4" wide. This sliding rail anchor is made from stainless steel to withstand harsh environments and offers complete hands-free horizontal mobility. This model replaces the AJ703A and features a new highly visible label required by the railway industry and new elongated slot for the included carabiner.



Features:

• Complete hands-free horizontal mobility
• Compact and lightweight design
• High strength stainless steel construction
• Extremely rugged and corrosion resistant stainless steel
• High strength self locking and closing carabiner
• Use Force2™ lanyard when tieing off at feet
• High visibility label
• Elongated carabiner slot
• Carabiner is rated up to 5,000 lbs (22 kN)

Application:

• Installs onto 2-3/4 in. to 3-1/4 in. wide rails (7.0-8.25 cm)
• Designed for work on a crane rail runway or railway line
• For Fall Arrest: Use with either a shock-absorbing lanyard or self-retracting lifeline (SRL)
  For Fall Restraint: Use with a positioning lanyard
• For one user with a combined weight of 310 lbs. (including user and tools)
• The personal fall arrest system (PFAS) used with the RailDog must limit free fall to 6 ft. or less, as required by OSHA
• For more technical information, please see the RailDog's spec sheet
