Rock Exotica P51 Omni-Block Swivel Pulley
The Omni-Block combines a pulley with a swivel to offer tremendous advantages. It can replace a conventional pulley, carabiner & swivel and is lighter, less expensive and saves valuable vertical space. It also allows installing/removing the rope while the pulley is still anchored. While the standard version serves the needs of most users, the Omni is also available with some specialized options.
Features:
- Weight: 9.2 oz (260 gm)
- Breaking Strength: 2 x 18 kN=36 kN
- Working Load: 2 x 4kN=8 kN
- Max Rope Diameter: 13 mm
- Sheave Diameter: 1.5” (38 mm)
Available Colors:

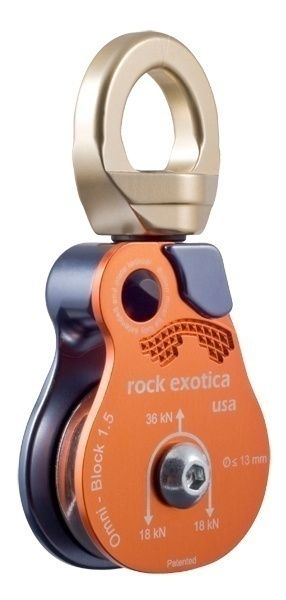

- Orange/Blue (P51)

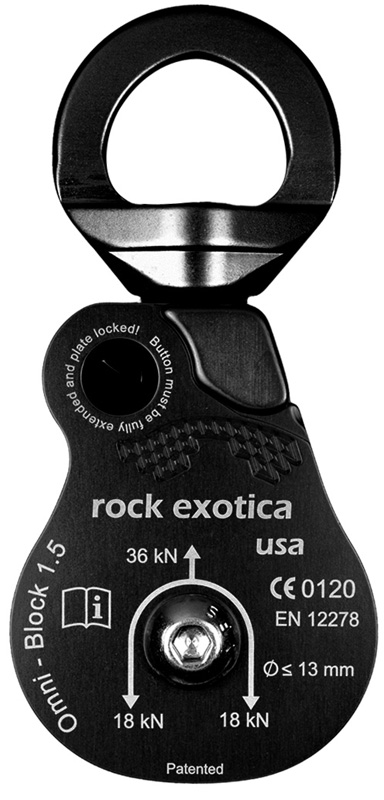

- Black (P51-B)
Rock Exotica Omni-Block Chart
|
ROCK EXOTICA OMNI-BLOCKS |
||||||||
|
DESCRIPTION |
SHEAVE |
MATERIAL |
COLOR |
WEIGHT |
MBS |
WLL |
MAX ROPE |
CERTIFICATION |
|
1.1” (28 mm) |
Aluminum |
Standard |
5.1 oz (145 gm) |
23 kN |
5 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
1.1” (28 mm) |
Aluminum |
Black |
5.1 oz (145 gm) |
23 kN |
5 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
1.5” (38 mm) |
Aluminum |
Black |
9.2 oz (260 gm) |
36 kN |
8 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
1.5” (38 mm) |
Aluminum |
Black |
10.7 oz (303 gm) |
36 kN |
8 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
1.5” (38 mm) |
Aluminum |
Standard |
14.5 oz (411 gm) |
36 kN |
8 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
1.5” (38 mm) |
Aluminum |
Black |
14.5 oz (411 gm) |
36 kN |
8 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
2.0” (51 mm) |
Aluminum |
Standard |
12.3 oz (348 gm) |
36 kN |
8 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
2.0” (51 mm) |
Aluminum |
Black |
12.3 oz (348 gm) |
36 kN |
8 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
2.0” (51 mm) |
Aluminum |
Standard |
19.4 oz (548 gm) |
40 kN |
8 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
2.0” (51 mm) |
Aluminum |
Black |
19.4 oz (548 gm) |
40 kN |
8 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
2.6” (66 mm) |
Aluminum |
Standard |
1.9 lbs (850 gm) |
80 kN |
20 kN |
0.5” (13 mm) |
CE / UIAA |
|
C-RX-P51
| Country of Manufacture: | United States |
| Manufacturer: | Rock Exotica |
| Type: | Single |
RX-P51
RX-P51-B
