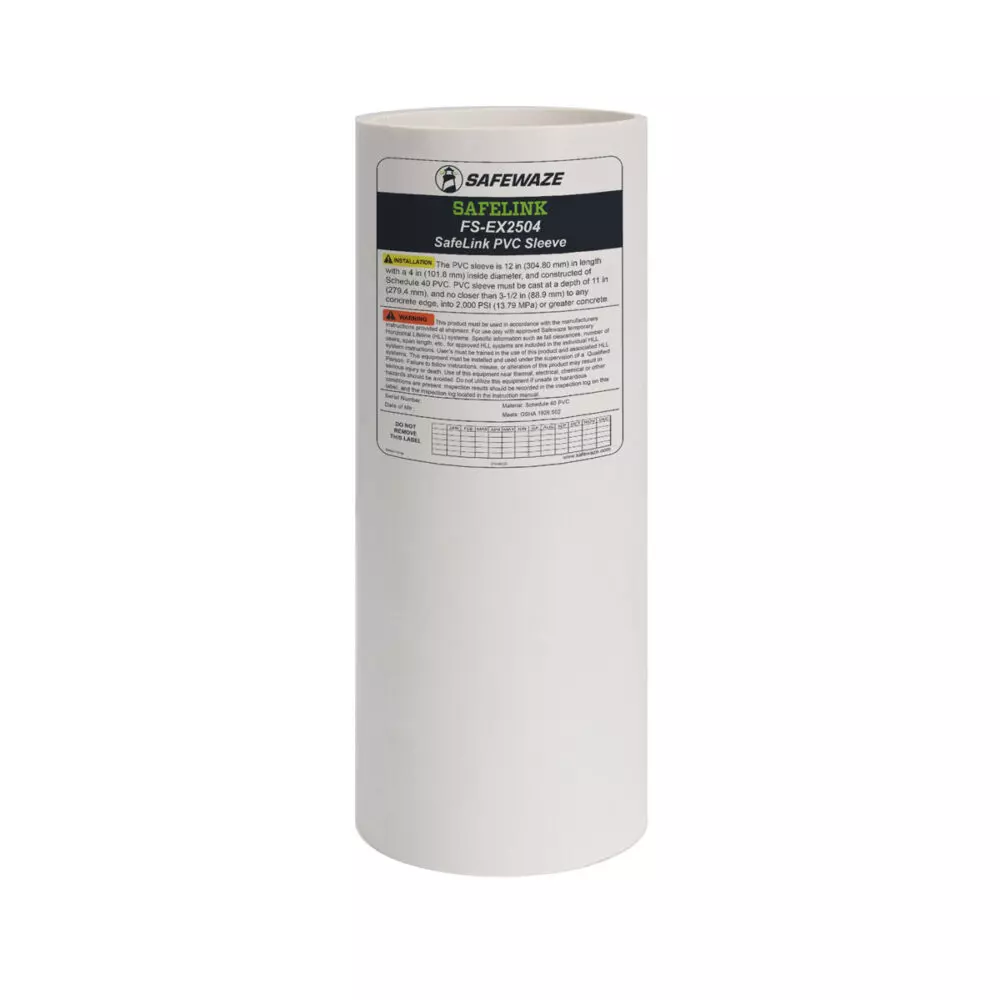

Safewaze Safelink Post Sleeve

Safewaze Safelink Post Sleeve

The Safewaze Safelink Post Sleeve is an insert sleeve for aluminum post installation on the Safewaze Mobile Safelink Horizontal Lifeline System. It is a 3 inch OD plastic pipe with a 12 inch depth. This post sleeve is inserted during the forming and puring process. The PVC sleeve must be cast at a depth of 11 inches and no closer than 3.5 inches to any concrete edge.

Features:

• Sleeve for post
• For use with the Safewaze Mobile Safelink Horizontal Lifeline System

Specifications:

• Depth: 12 in.
• Diameter: 4 in.
• Material: 3 in. Schedule 40 PVC
