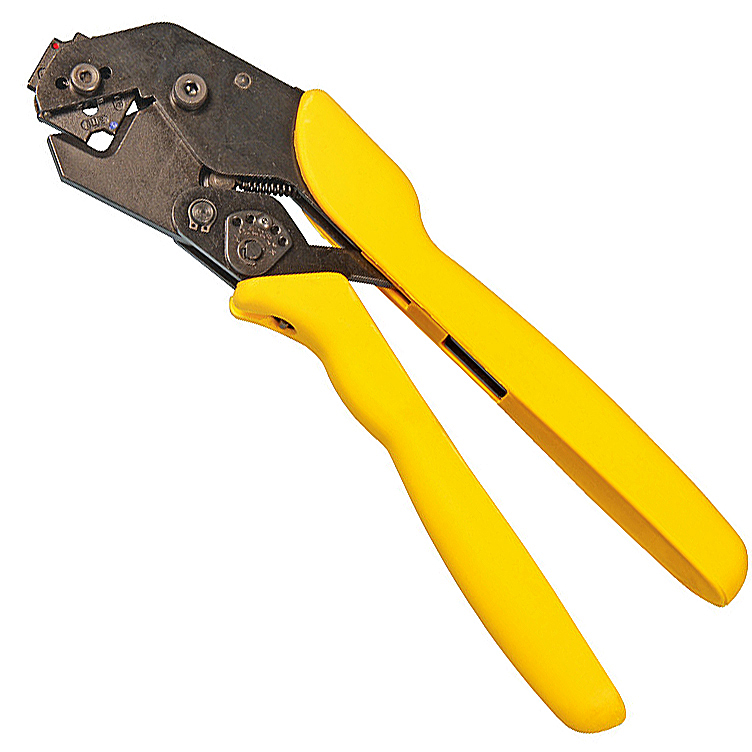

Sargent 4290CT Four-Size Copper Power Compression Lug Crimp Tool

The Sargent 4290CT Super Ergo frame design reduces hand stress. The progressive pivoting action coupled with an easy reach cushion grip facilitates productivity. Mechanical advantage is optimized to reduce hand pressure while maintaining proper hand grasp ratios. Fine blanked, high carbon steel construction provides the highest level of accuracy and performance available within the industry. These tools are manufactured in the US and are backed by over 100 years of quality craftsmanship.

Features:

• Rotating die is color coded to industry standard sizes: Red-8; Blue-6; Grey-4; Brown-2
• Frame and dies manufactured to exacting specifications
• High mechanical advantage with molded cushion grips minimize user fatigue
• Easy reach frames that optimize hand grip ratios to maximize user productivity
• All bearing holes are reamed, pivot pins are centerless ground and all working components are heat treated
• Positive ratcheting assembly with emergency release
• Tool life is conservatively rated at 50,000 cycles
• Crimps meet or exceed UL tensile requirements
• Standard tool length is 10 - 1/2" to facilitate two handed crimping

Specifications:

• Item Application:   Copper power compression lugs, color coded RED-8, BLUE-6, GREY-4, BROWN-2
• Connector/Terminal Type:   Compression lugs & splices
• Crimp/HEX/Wire Sizes:   8, 6, 4 & 2 AWG
• Tool Length:   11 inches
• Tool Weight:   1 lb. 8 oz.
