Home > Manufacturers > Weisner > Screw Pin Type Anchor Shackles

Model#: C-WS-SHA12LR

Stock#: C-WS-SHA12LR



Weisner Screw Pin Type Anchor Shackles

Multiple Options Available

$3.99 to $56.99 Sale price: $3.99 to $56.99

FREE SHIPPING OVER $75!
Please select an option below

Diameter *

Weisner Screw Pin Type Anchor Shackles

Weisner Screw Pin Type Anchor Shackles has the following features:

  • Forged Carbon Steel with Alloy Pins
  • Hot Dip Galvanized
  • Meets the requirements of the Federal Specification RR-C-271D, Type IV A, Grade A, Class 2
  • Country of Origin: China

WS-SHA38LR Specifications:

  • Size in Inches - 3/8"
  • Working Load Limit in Tons (Vertical) - 1
  • Pin Diam. in Inches - 7/16
  • Approx. Wt. Each in Pounds - 0.30

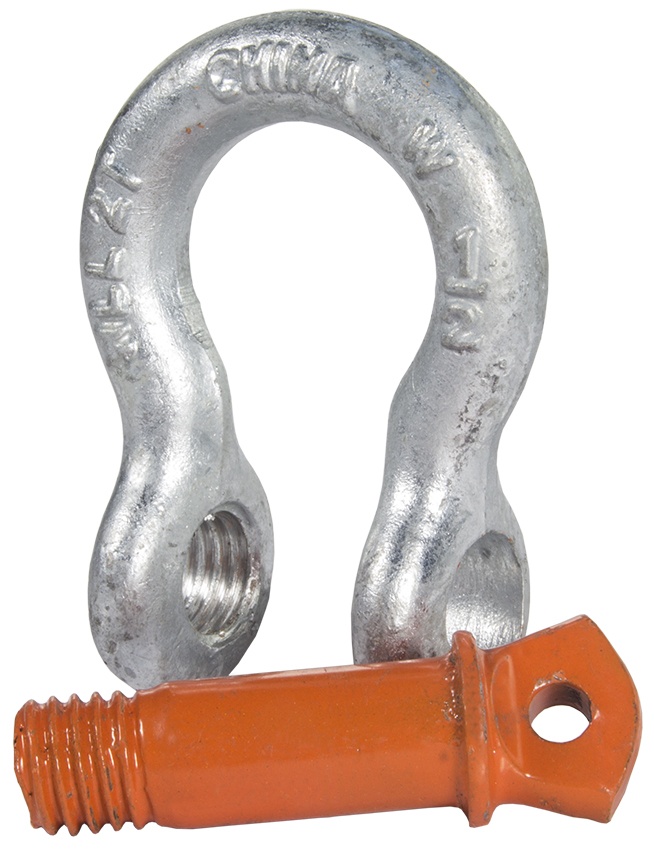

WS-SHA12LR Specifications:

  • Size in Inches - 1/2"
  • Working Load Limit in Tons (Vertical) - 2
  • Pin Diam. in Inches - 5/8"
  • Approx. Wt. Each in Pounds - 0.70

WS-SHA58LR Specifications:

  • Size in Inches - 5/8"
  • Working Load Limit in Tons (Vertical) - 3 1/4
  • Pin Diam. in Inches - 3/4"
  • Approx. Wt. Each in Pounds - 1.37

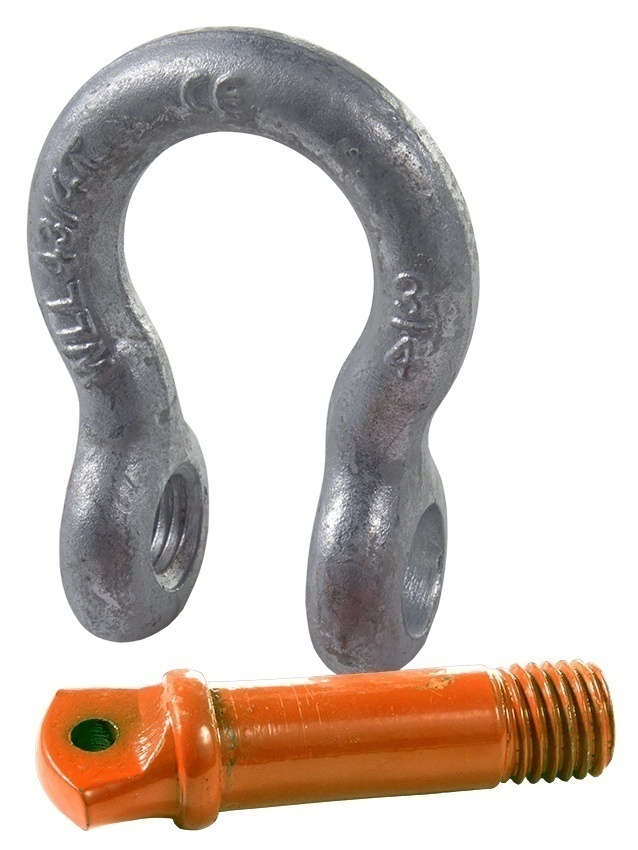

WS-SHA34LR
 Specifications:

  • Size in Inches - 3/4"
  • Working Load Limit in Tons (Vertical) - 4 3/4
  • Pin Diam. in Inches - 7/8"
  • Approx. Wt. Each in Pounds - 2.35

SHA78LR Specifications:

  • Size in Inches - 7/8"
  • Working Load Limit in Tons (Vertical) - 6-1/2
  • Pin Diam. in Inches - 1
  • Approx Wt. Each in Pounds - 3.62

WS-SHA1LR Specifications:

  • Size in Inches - 1"
  • Working Load Limit in Tons (Vertical) - 8-1/2
  • Pin Diam. in Inches - 1-1/8
  • Approx Wt. Each in Pounds - 5.03

WS-SHA118LR Specifications:

  • Size in Inches - 1-1/8"
  • Working Load Limit in Tons (Vertical) - 9-1/2
  • Pin Diam. in Inches - 1-1/4
  • Approx Wt. Each in Pounds - 7.41

WS-SHA114LR Specifications:

  • Size in Inches - 1-1/4"
  • Working Load Limit in Tons (Vertical) - 12
  • Pin Diam. in Inches - 1-3/8
  • Approx Wt. Each in Pounds - 9.5

WS-SHA138LR Specifications:

  • Size in Inches - 1-3/8"
  • Working Load Limit in Tons (Vertical) - 13-1/2
  • Pin Diam. in Inches - 1-1/2
  • Approx Wt. Each in Pounds - 13.53

C-WS-SHA12LR

Country of Manufacture: China
Manufacturer: Weisner
