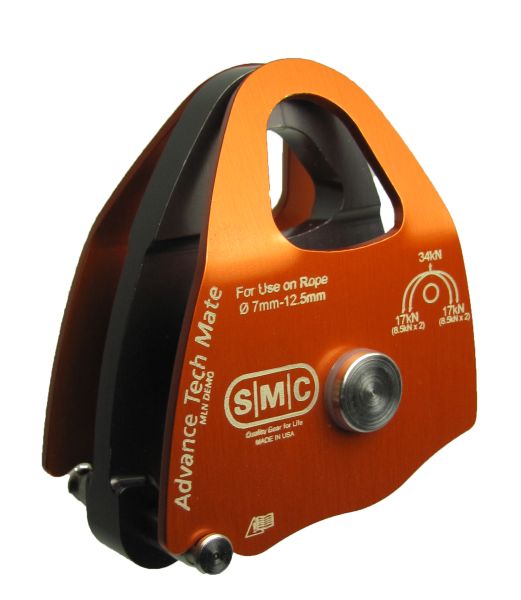

This new pulley frame design is ideal for making compact haul kits. An integrated stainless pins help retain the rope when a rigged system is packed so that system can be pulled out and used immediately. Manufactured from high quality aluminum and anodized to help prevent corrosion.  The Advance Tech Mate is the ideal compact pulley for technicians wanting to use the Advance Tech HX in a mini haul system. The Advance Tech Mate will support ropes diameters from 7mm up to 12.5mm.

PRODUCT SPECIFICATIONS:

• Type: Double
• Axle: Ball Bearing
• Material: High Quality Aluminum
• Dimensions: 2.97” x 2.40” x 1.81”
• Weight: 5.44 oz (154g)
• Rope Range: 7mm to 12.5mm
• Sheave: 1.5” aluminum
• 3 Sigma MBS: 34kN (7,644 lbf)

FEATURES AND BENEFITS:

• High efficiency sealed ball bearings providing flawless function under conditions that would shut down lesser grade pulleys.
• Side plates are precisely tensioned for easy one-handed operation and secure placement at any point along the rope.
• Low profile fasteners reduce snagging and hanging up when pulley is being moved.
• Wide base design works most efficiently with Prusik cords of up to 8mm.
• Made in the USA
• NFPA 1983 T
