Sunsight AAT-30 AntennAlign Alignment Tool

1-Year easy financing available. Click Here for more information.

Features:

• Align antenna azimuth, tilt, roll and height better than carriers’ specifications
• Full-size cellular panel antennas, all Ericsson AIR antennas, small cell housings, and the ability to capture azimuth from the ground
• Creates an alignment report for individual antennas or the entire site. Includes azimuth, tilt, roll, height and geographic location (Lat/Long)

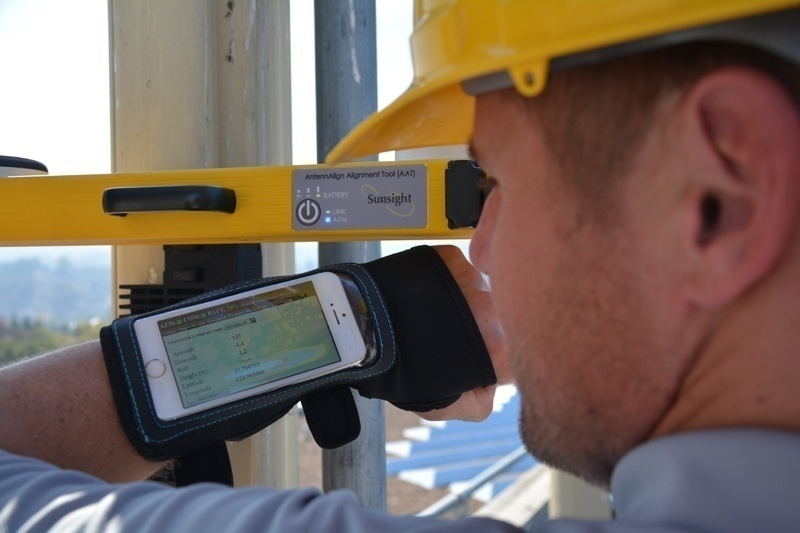

• Send reports with all antenna measurements right from the site using any device (Android, iOS, Windows, etc)
• No additional software, no post-processing, no cables required
• The lightest instrument on the market at 3.6 pounds; fast, easy to use amount at 2 pounds
• Most durable unit available; RF shielded, weatherproofed aluminum housing; wet, cold, extreme heat is no match for the AAT-30



** Depends on multipath environment, number of satellites in view, and satellite geometry. Requires SBAS corrections.

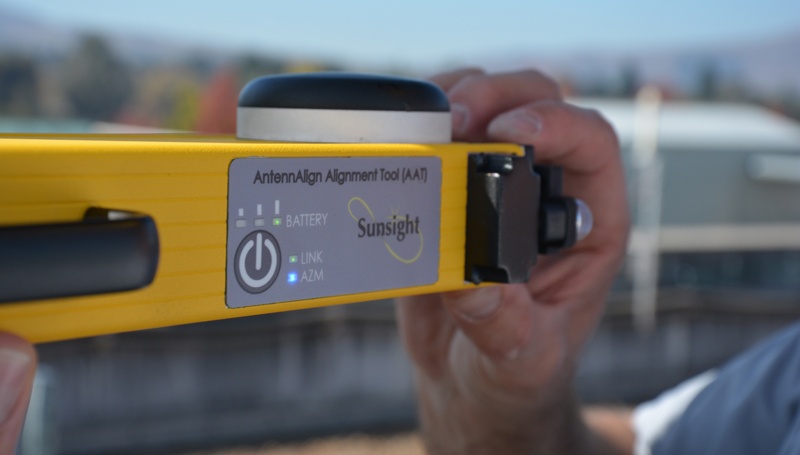

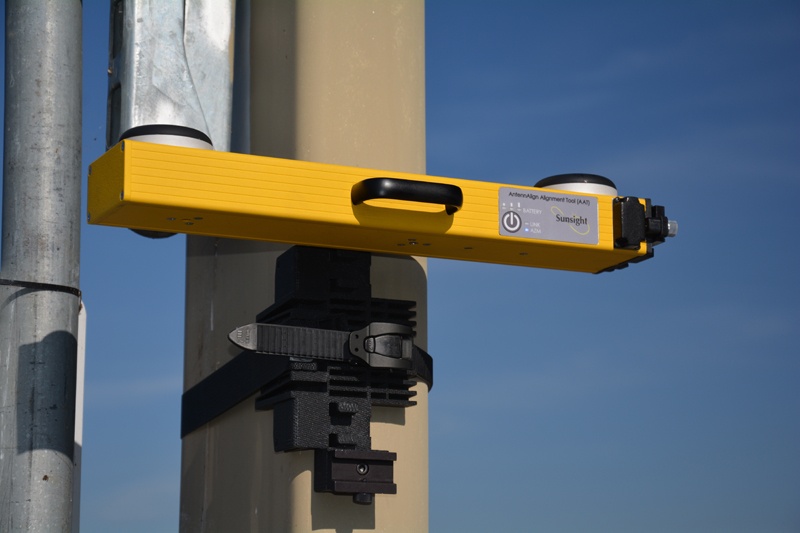

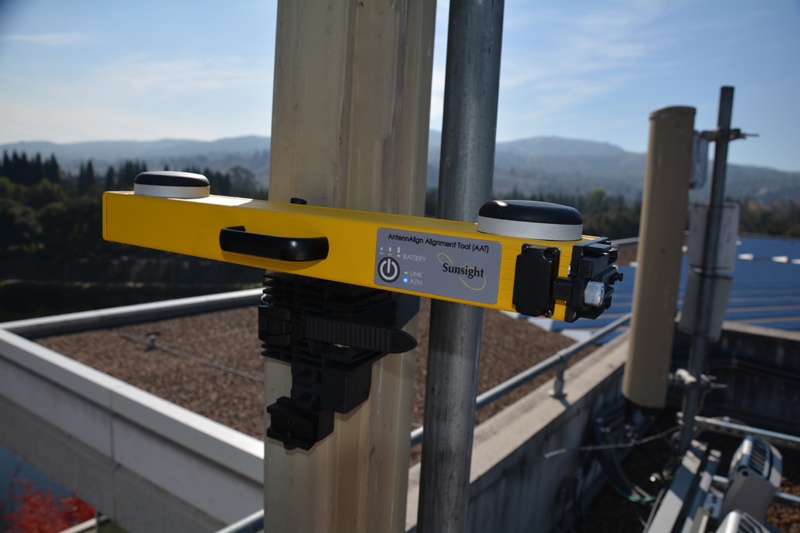

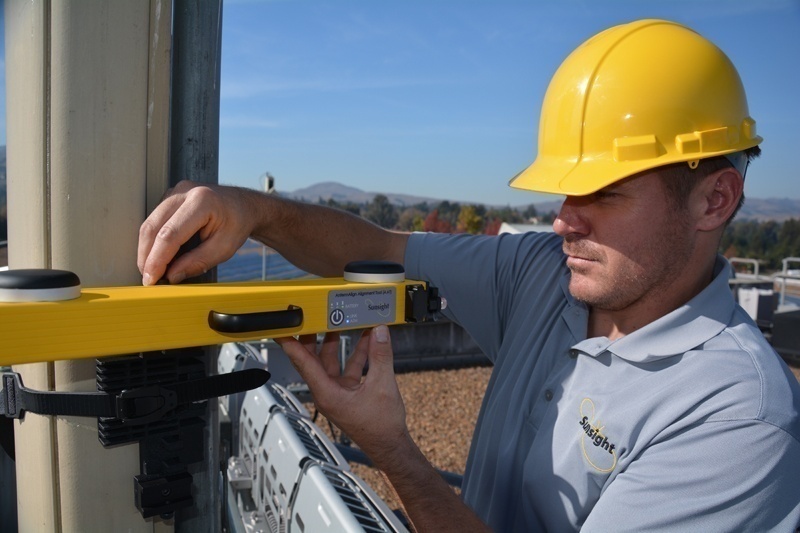

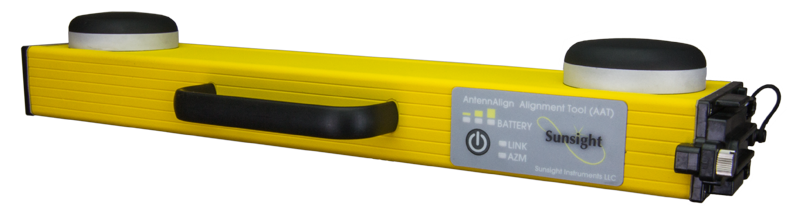

The Sunsight AAT-30 AntennAlign Alignment Tool (AAT) ensures accurate antenna positioning during installations, deployments, and operations with its leading-edge techniques. Simple and easy to use, the AntennAlign can be mounted several ways to fit a variety of antenna settings. With its powder-coated aluminum housing, the AntennAlign offers a durable antenna alignment solution that saves time and money.

This alignment tool also offers an on-site quick capture feature that collects position data that is not available prior to climbing. A Sunsight soft carrying case, wrist cuff, and side mount come included with the AAT-30 alignment tool.

Sunsight offers a 3-year manufacturer warranty. For more information please click here to view their policies. If you need to file a claim, click here to start the process.
