TEK Solutions Pink TEK Pink Clip (100-Pack)

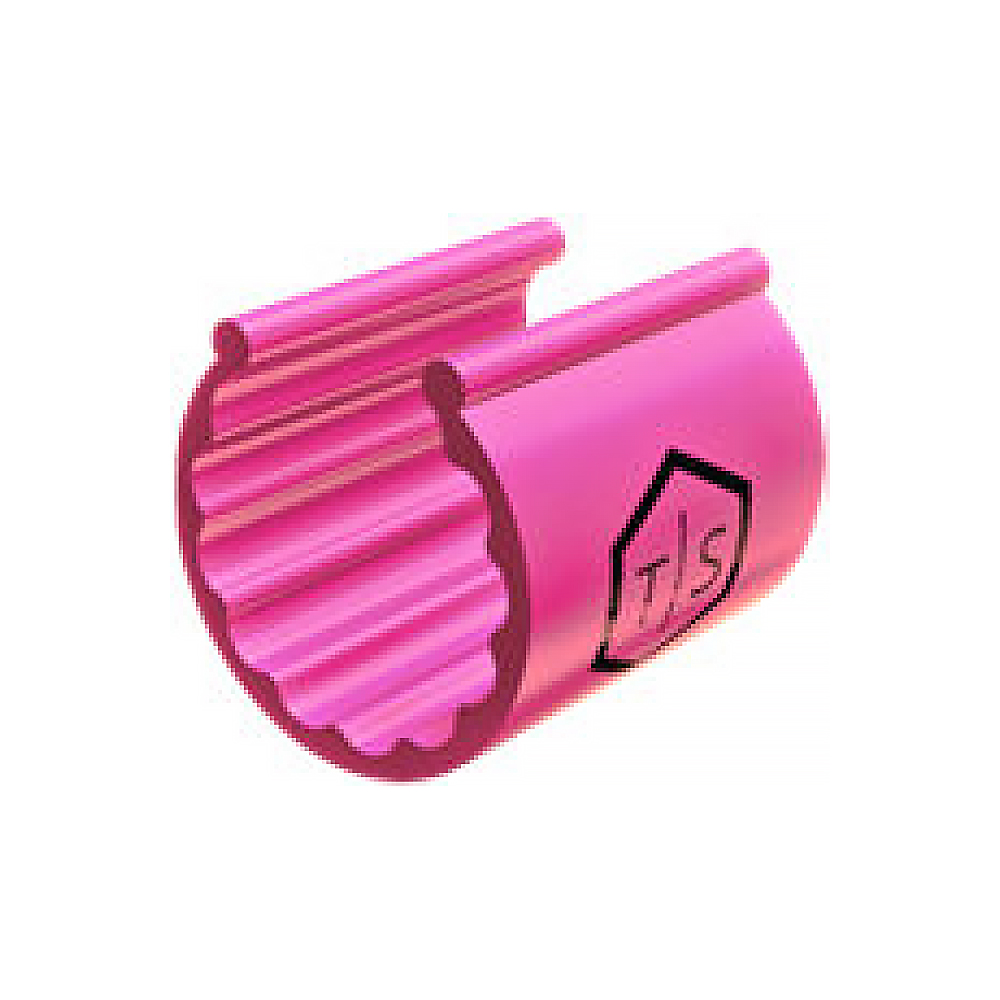

The TEK Clip by TEK Solutions is an outdoor-rated, UV-resistant, polymer clip available in a variety of colors and sizes to aid in cable identification on cell sites. The simplistic design allows for quick, one-handed installation with no additional tools required. Once installed, the clip can be easily adjusted multiple times or removed with ease. One key feature of the TEK Clip is in its design which allows for installation over factory labels. This is due to the gap left in the clip opening once installed. Lastly, the TEK Clip will not come loose due to natural thermal expansion.

Features:

• EASY INSTALLATION: Solid One-Piece design is easy to install quickly with no additional tools required
• WEATHERPROOF: Superior weather performance in all climate conditions: Rain, Snow, Heat & Cold
• FLEXIBLE DESIGN: One size fits a range of cable sizes & can be placed over factory labels. Easily adjustable

Specifications:

• HEIGHT: 17.29 MM | 0.68 IN
• LENGTH: 19.00 MM | 0.75 IN
• WIDTH: 18.54 MM | 0.73 IN
• COMPATIBLE DIAMETER, IDEAL: 16.00 MM | 0.63 IN (1/2” Nominal Cable Size)
• COMPATIBLE DIAMETER, MAXIMUM: 17.75 MM | 0.70 IN
• COMPATIBLE DIAMETER, MINIMUM: 14.25 MM | 0.56 IN
• PACKAGE QUANTITY 100
• OPERATING TEMPERATURE: -46 °C TO +85 °C (-50 °F TO +185 °F)
• UV RESISTANCE: ≥1000 HOURS EXPOSURE IN ACCELERATED UV LIFE CHAMBER
• SYSTEM PIM PERFORMANCE: IM3 <-100 DBM ~ IEC 62037-8, N.F 2X20W D/S TEST
• RETENTION FORCE: 21N (4.7 LBI) TO 25N (5.6 LBI) BASED ON CABLE
• DUTY CYCLE: ≥200 CYCLES
• MATERIAL TYPE: UV STABLE POLYCARBONATE
• AGENCY CLASSIFICATION: ISO 9001:2015 WAS DESIGNED, MANUFACTURED, AND/OR DISTRIBUTED UNDER
