Tempo Communications CATV Cable Tone & Probe

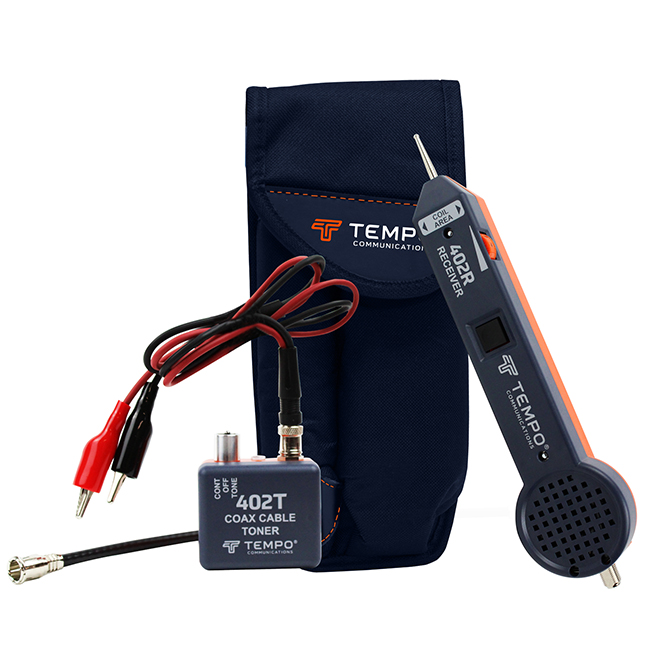

The 402K consists of: one transmitter, one receiver, one male F-to-F connector adapter cable, one male F-to-alligator clip adapter cable, and a 700C carrying case. Designed specifically for the CATV industry, the Model 402K will send tone through any passive device along the cable path. You can tone through splitters, directional couplers and traps. No more long delays trying to figure out non-tagged or mis- tagged cable drops. The Model 402K is simple to use and provides fast, accurate results. The transmitter and receiver are equipped with female F-connectors and the kit provides both audible and LED test and tone indications. The addition of optional adapter test leads allows the 402K to be used on distribution cables as well as wire pairs or single conductors.



 Features:

• Tone through splitters
• Identify non-tagged cable drops
• Identify mis-tagged cable drops
• Fast, Accurate Cable Indentification
• Sends Tone to Identify Wires
• Four Distinct Tone Signatures



Benefits:

• With its user defined toneoutput, up to four 402T Toner units can be used simultaneously for tracing multiple cable runs.
• As a continuity tester, the Model 402K provides both audible tone and LED display to indicate resistance levels.Identify mis-tagged cable drops
• The unit will even identify the presence of AC or DC voltage on the cable under test.
• The 402R receiver provides three methods of signal detection:
                     - Electrostaticpickupfor non-terminated cables
                     - Electrostaticpickupforterminated or shorted cables
                     - Directconnectionwhenidentifying passive devices
