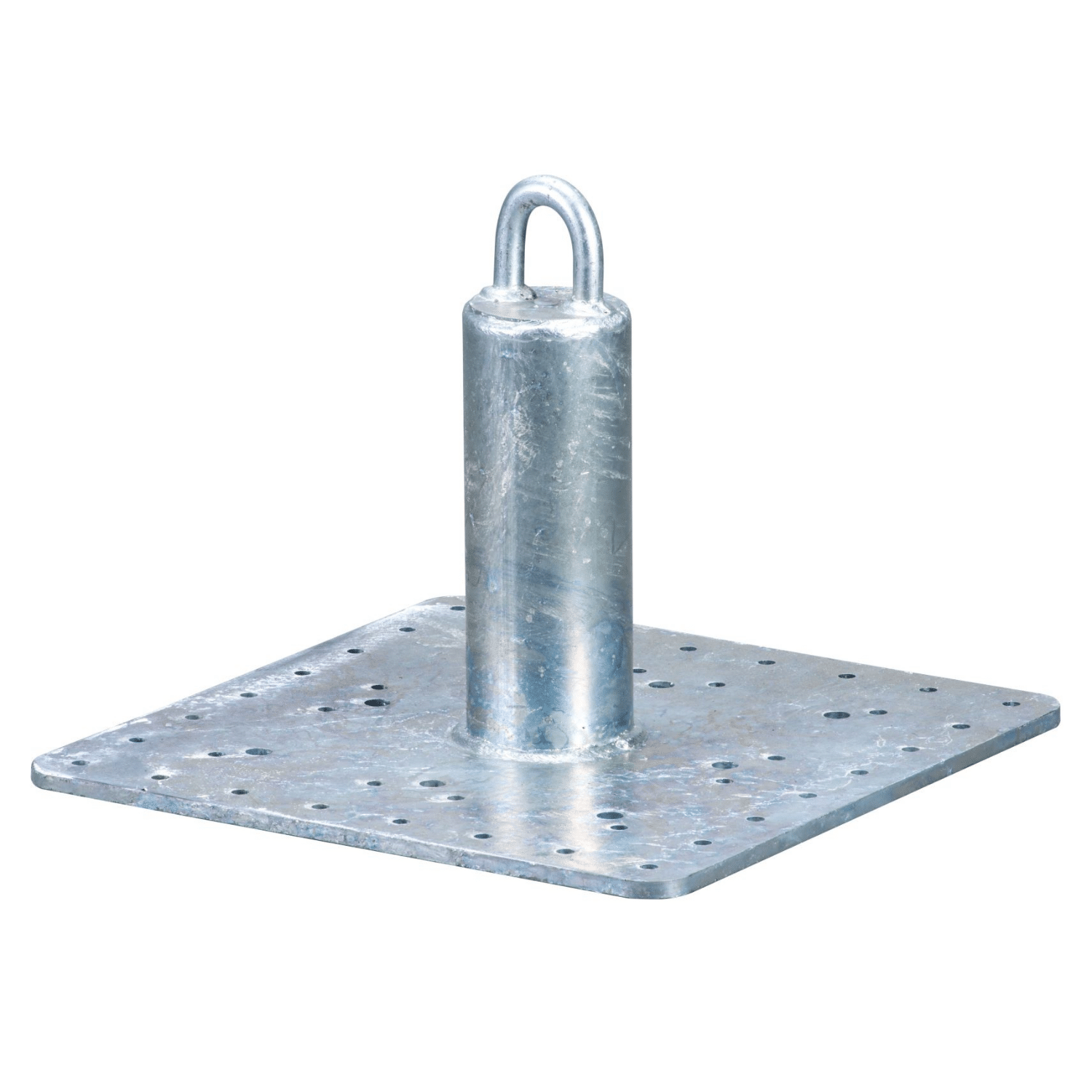

Tie-Down Commercial Roof Anchor

The Tie-Down Commercial Roof Anchor manufactures anchors compatible with wood, metal, and concrete substrates with a wide variety of options. The anchorage post functions by extending through the roof, accessible during and after construction. Attach the pass-through horizontal lifeline parts for a continual hands-free fall arrest system used for perimeter work. In most cases, commercial roof anchors can be used in window-washing tieback applications. The Tie-Down Commercial Roof Anchor series includes durable, galvanized steel conforming to ASTM standards. These roof anchors fit nearly all fall protection applications, and the riser height ranges from 8” to 36.” Tie Down Safety keeps exacting standards and quality control through quality raw materials and components made in the USA. The square base plates are fabricated with 40 - 3/8” holes for use with #14 screws and Headlok screws. Any one of the 8 - 1/2” holes may be used for bolt or concrete embedment.

Features:

• Easy Installation
• Steel Applications
• Durable Steel And Galvanized Finish
• Use With Retractable Lifelines, Vertical Lifelines, Rope Grab Units, Or Horizontal Lifeline Systems
• Meet Compliance: OSHA 1910 And OSHA 1926 Subpart M Regulations

Specifications:

• Riser: 12"
• O.D: 3"
• Base Thickness: 3/8"
• Base Size: 16" x 16"
• Attachment Type: Screw/Bolt On
• A number of Holes/Fasteners: 40 Wood/Metal/8 Concrete
• Tie Down Part Number: 70864-L16
