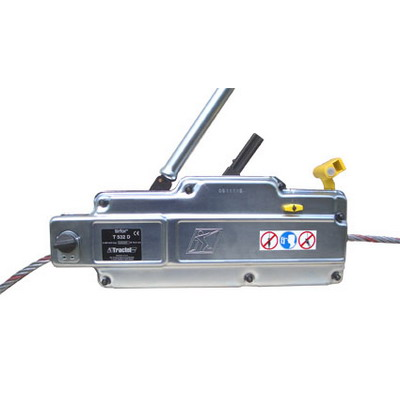

Tractel TIRFOR Wire Rope Winch

Tirfor machines are portable manual hoists used with maxiflex wire rope (wire rope not included). They can be used to lift, pull and position loads over great distances depending on the wire rope length. They are suitable for use in numerous configurations and are the ideal solution for use in professional applications; they are operated by a simple lever. The load capacity of the Tirfor system can be increased by using sheave blocks. The Portable hoist is used to lift and pull loads in numerous configurations with long cable lengths.

Features:

• Low weight—quick installation
• No limitation in terms of cable length
• Manageable, light-weight, robust, powerful
• Increase load capacity with deflection sheaves
• Overload protection
• Precise load placement within millimeters
• Wire rope is not included with the purchase of the TIRFOR winch

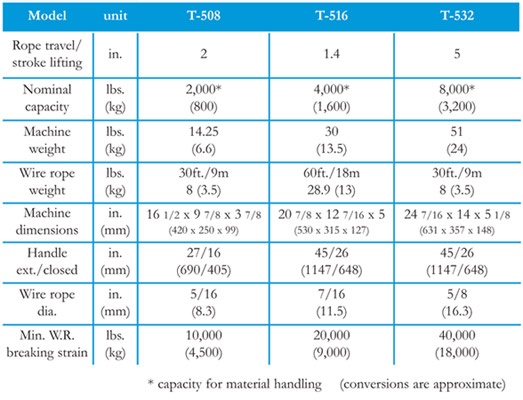

Specifications:

• T 508D (008699124):
• Capacity: 2,000 lbs
• Wire Rope Capacity: 30' of 5/16"
• T 516D (017099124):
• Capacity: 4,000 lbs
• Wire Rope Capacity: 60' of 7/16"
• T 532D (033099124):
• Capacity: 8,000 lbs
• Wire Rope Capacity: 30' of 5/8"
