UCL Swift North America Precision Fiber Optic Cleaver with Auto-Rotation

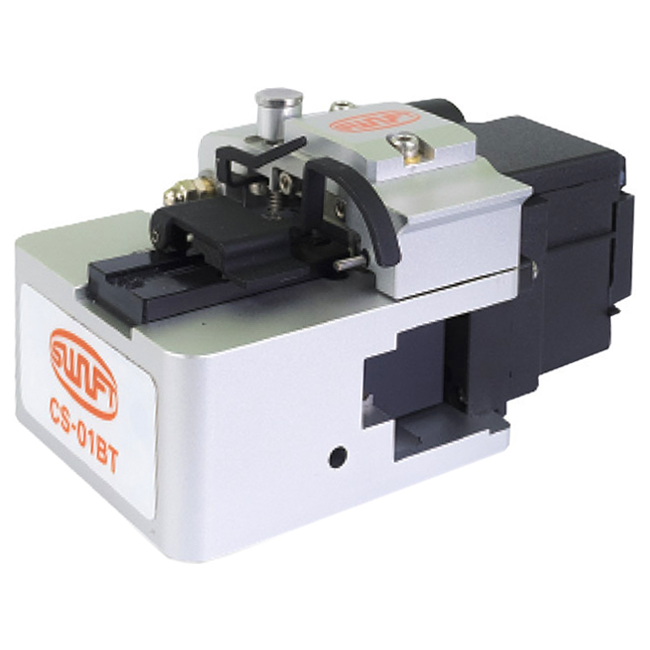

High performance fiber splices require the ultimate precision tool for fiber cleaving, such as the CS-01BT. UCL Swift’s stand-alone fiber optic cleavers are available with a single fiber adapter for 250 to 900 micron coated single fibers. The simple user interface allows for easy operation and single-action capabilities cleave and collect fiber shards with one device.

Features:

• Auto-rotating blade
• Oil damper system
• Single-action (fully automatic) for cleaving and collecting fiber chips
• 75,000 cleaves per blade

Specifications:

• Bare Fiber Diameter:   125µm
• Coating Diameter:   250 ~ 900µm
• Cleave Angle:   Typical 0.5°
• Blade Life Time:   75,000 fibers
• Applicable Splicer:   K11, K33, KF4
• Cleave Length – Universal Holder :   Single 7mm ~ 16mm
• Cleave Length – Exchange Holder:   Single 7.5mm
• Dimensions:   90×58×50mm
• Weight:   276g
• Chip-Box:   O
