Home > WestFall Pro 7001 Termination Plate

WestFall Pro Rope Termination Plate

WF-7001
This item qualifies for Quick Ship. Quick ship items typically ship out the same day you order them as long as the order is placed before 6pm EST, Monday through Friday. Get It By Jul 28
FREE SHIPPING OVER $75!

$50.99

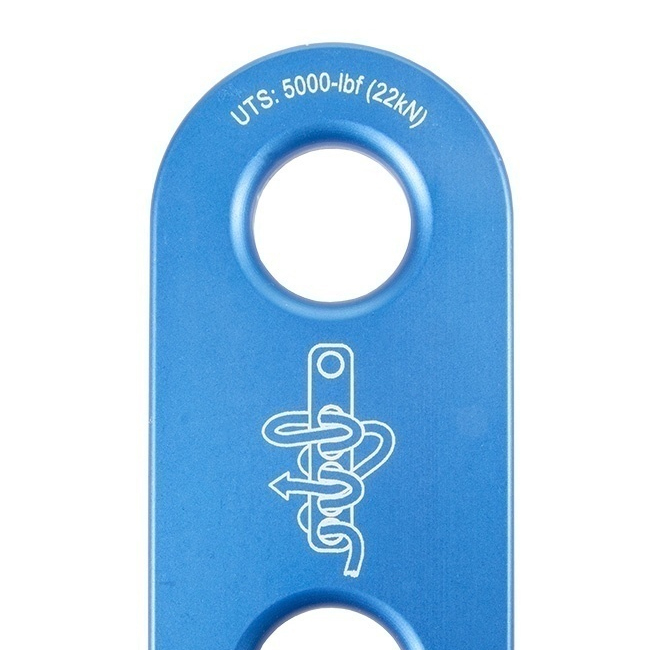

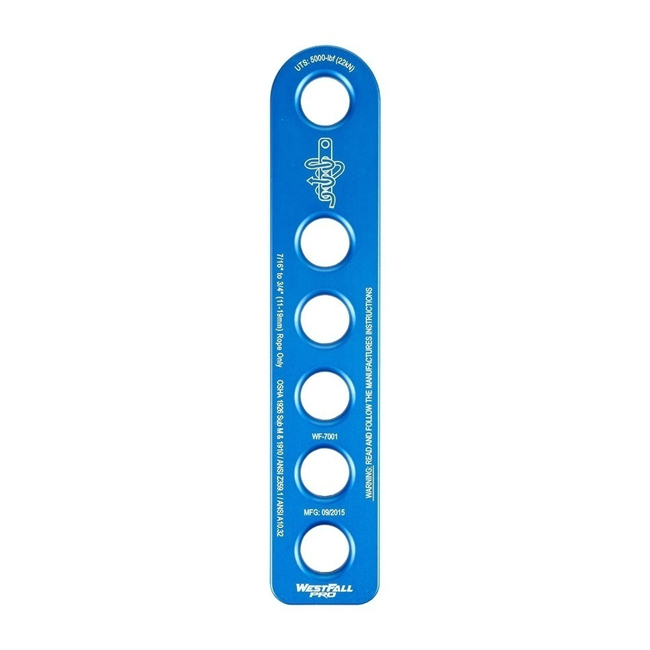

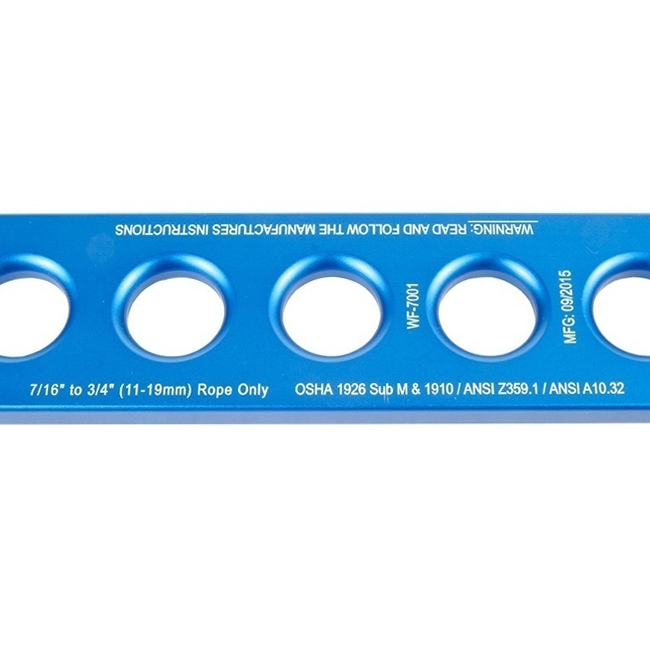

WestFall Pro Rope Termination Plate

The WestFall Pro Rope Termination Plate is used to quickly and easily create a compliant terminated rope end that can be connected to an anchorage point. Made from aluminum, this termination plate offers a lightweight alternative to factory terminated rope ends. Use the top hole for connecting to anchorage and the others for threading the rope. For use with 7/16" to 3/4" kernmantle rope or 5/8" to 3/4" three strand rope.

Specifications:

  • For use with:
    • 7/16" to 3/4" kernmantle rope
    • 5/8" to 3/4" three strand rope
  • UTS: 5,000 lbf (22kN)
  • Max User Weight: 310 lbs
  • Working Load: 1,000 lbs
  • Material: Aluminum
  • Finish: Anodized
  • Color: Blue
  • Meets: OSHA 1926 SUB M, OSHA 1910, ANSI Z359.1, and ANSI A10.32
WF-7001
Capacity: 5000 lbs
Color: Blue
Finish: Anodised
Industry: General Industry
Rope Access & Rescue
Solar
Tower Climbing
Tree Care
Utility
Wind Energy
Manufacturer: WestFall Pro
Material: Aluminum
Minimum Breaking Strength (MBS): 22 kN
Rope Compatibility (Min/Max): 3/4" or less
Standards: ANSI A10.32
ANSI Z359.1
OSHA 1910
OSHA 1926 Subpart M
