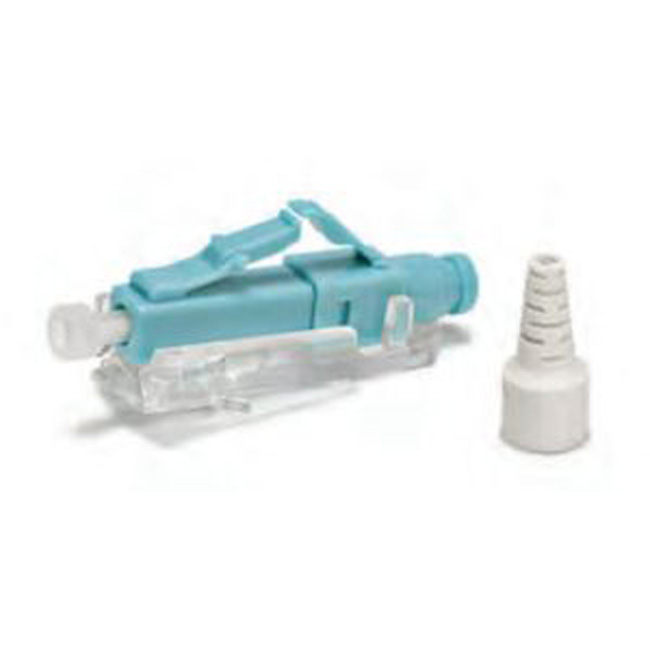

WireWerks LC Field-Installable Fiber Optic Connector (UPC) (Non-Splice)

Features:

• Fast, simple installation process with reliable, high-performance, high-yield results
• Integrated Visual Fault Locator (VFL) for instant visual verification of termination
• Common 3-Step Procedure for all connector types is easy to learn and repeat
• Low Insertion Loss
• No crimp, no epoxy and no polishing reduces installation time and cost
• Follow TIA/EIA-568-C.3 color identification scheme for easy identification of fiber type; visually compatible with patch cords and connectivity that also follow the color ID scheme
• Field terminable LC/UPC connector, OS2,  900µm, tight buffer


Wirewerks LC Field-Installable Fiber Optic Connector is a pre-polished, pre-assembled connector that eliminates the need for hand polishing and epoxy in the field, allowing fast, reliable, high-quality terminations in the field in less than 2 minutes from stripping to installation. Using a Visual Fault Locator (VFL), a ‘light pipe’ on the connector body provides instant visual verification of a successful installation. The connector comes with an assembly jig and fiber holder to ensure accurate alignment and fiber cleave when terminating. Wirewerks LC Field-Installable Fiber Optic Connectors are fully compatible with all standard LC connectors and are available in single-mode and multimode (50µm or 62.5µm) configurations for termination on 250µm or 900µm tight-buffered fiber.

Standards:

• ANSI/TIA-568-B.3: Optical Fiber Cabling Component Standard
• GR-326-CORE: Generic Requirements for Single Mode Optical Connectors and Jumper Assemblies.
• TIA-604-10: Fiber Optic Connector Intermateability Standard - Type LC
• IEC61754-20: Fibre Optic Connector Interfaces - Part 20: Type LC connector family
• UL 94: Tests for Flammability of Plastic Material for Parts in Devices and Appliances.
• RoHS: Directive on Restriction of Hazardous Substances
