Model#: P54

Stock#: PZ-P54

UPC/GTIN/EIN: 3342540100343

Petzl JAG TRAXION High Efficiency Double Progress Capture Pulley

Name: Petzl JAG TRAXION High Efficiency Double Progress Capture Pulley
SKU: PZ-P54
Price: 149.95 USD
Availability: InStock

$149.95 Sale price: $149.95 EA (1)

THIS ITEM SHIPS FOR FREE!

Get It By Jun 23

$149.95

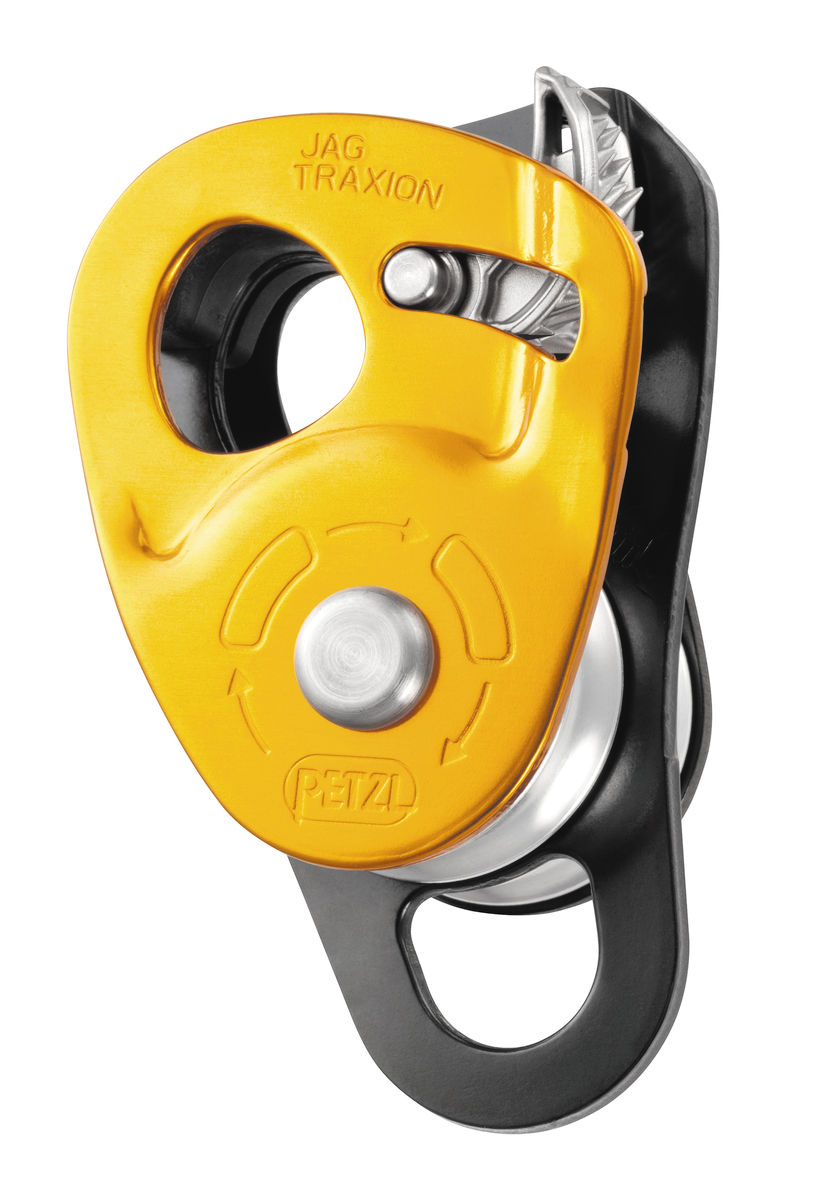

Petzl P54 Jag Traxion High Efficiency Double Progress Capture Pulley

The Petzl Jag Traxion pulley is designed for use with the Jag double pulley to make a 4:1 haul system. The toothed cam features a self-ceaning slot for optimal performance in any condition. The sheave is mounted on the ball bearings for increased efficiency.

Specifications:

Weight: 145 g
Certification(s): CE EN 567, NFPA 1983 Technical Use
Material(s): aluminum, nylon
Min. rope diameter: 8 mm
Max. rope diameter: 11 mm
Sheave type: sealed ball bearings
Sheave diameter: 25 mm
Working load: 2 × 1,5 kN × 2 = 6 kN
Breaking strength: 2 × 4 kN × 2 = 16 kN
Efficiency: 91 %

PZ-P54

Color:	Yellow Black
Country of Manufacture:	France
Manufacturer:	Petzl
Minimum Breaking Strength (MBS):	16 kN
Pulley Features:	Double
Rope Compatibility (Min/Max):	8 - 11 mm
Standards:	CE EN 567 NFPA 1983 Technical Use
Working Load Limit (WLL):	6 kN
Weight:	0.40
