SMC Advance Tech HX Pulley

PM-SM154900N

$177.50

THIS ITEM SHIPS FOR FREE!
Get It Between May 09 and May 22

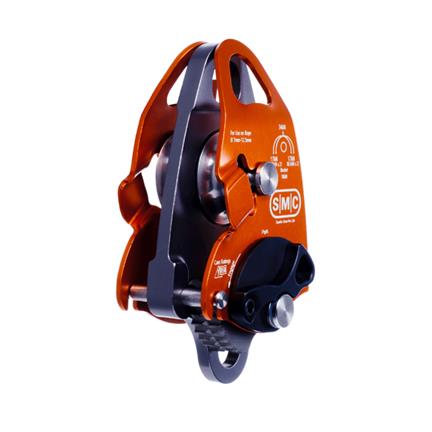

SMC Advance Tech HX Pulley

The SMC Advance Tech HX Pulley supports rope diameters from 7 to 12.5 mm. This pulley is ideal for all rescue applications where a small mechanical advantage system is being used. The HX is a double pulley with an integrated cam that provides immediate progress capture. It is made of high quality aluminum and anodized to help prevent corrosion. The stainless steel pins retain the rope when a rigged system is pre-packed and it weighs 9.5 ounces.

Key Features:

  • Made from high quality aluminum
  • Anodized to help prevent corrosion
  • Supports rope diameters from 7 mm up to 12.5 mm
  • Stainless steel pins retain the rope when a rigged system is pre-packed
  • Made in the USA

Specifications:

  • Color: Orange/Grey
  • Type: Double Pulley-Capture
  • MBS: 34 kN (7644 lbf)
  • Weight: 9.5 oz (270 g)
  • Length: 5.08 in. (12.9 cm)
  • Width: 2.74 in. (6.9 cm)
  • Height: 1.97 in. (5.0 cm)
  • Becket Strength: 18 kN
  • Axle: Ball Bearing
  • Sheave: 1.37 in. Aluminum
  • Tread: 1.00 in.
  • Max Rope Size: 12.5 mm
  • Material: Anodized Aluminum
  • NFPA 1983 (2012), T compliant
  • Berry compliant

PM-SM154900N
Color: Orange
Gray
Width: 2.74" (6.9 cm)
Country of Manufacture: United States
Height (Generic): 1.97" (5.0 cm)
Length: 5.08" (12.9 cm)
Manufacturer: SMC
Material: Anodized Aluminum
Minimum Breaking Strength (MBS): 23 - 44kN (5,060-9,891 lbs)
Pulley Features: Double
Standards: NFPA 1983 Technical Use
Weight: 0.60
