Rock Exotica Omni-Block 2.6 Inch Rigging Pulley / Material Handling Block

Status:
Typically ships same day if ordered by 7pm EST
Rating:
100% of 100
FREE SHIPPING!
Rock Exotica's Material Handling Block features a sheave diameter of 2.6" and a WLL of 4,500 lbf.


Rock Exotica Omni-Block 2.6 Inch Rigging Pulley / Material Handling Block

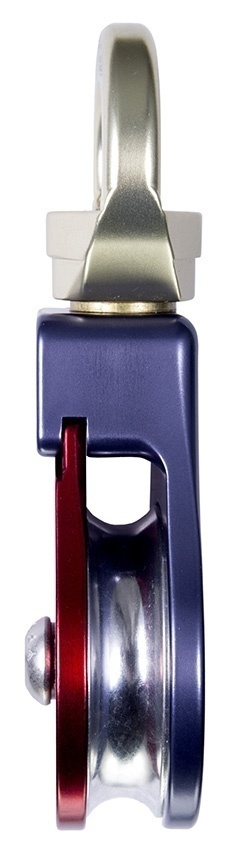

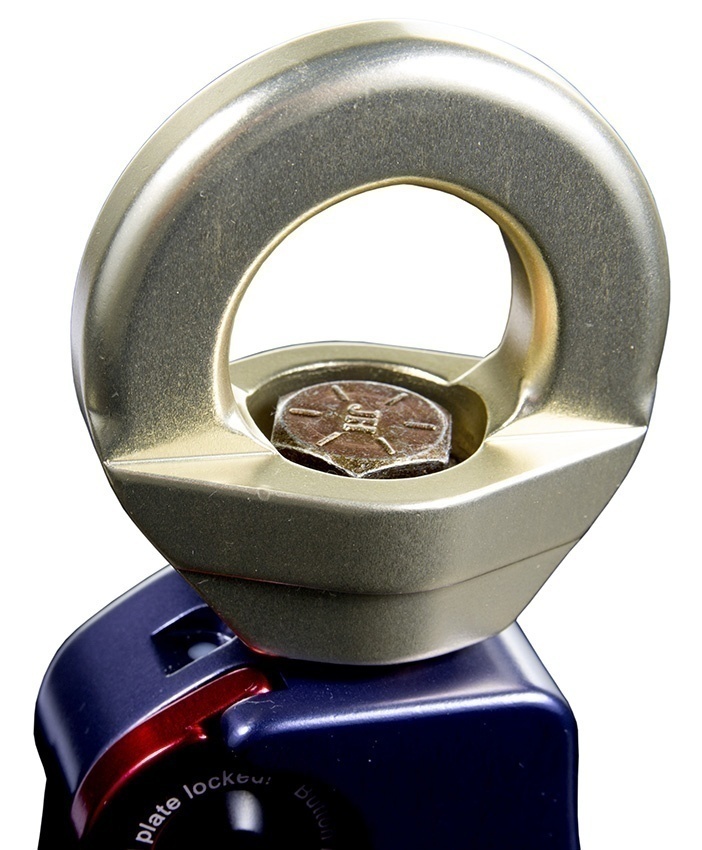

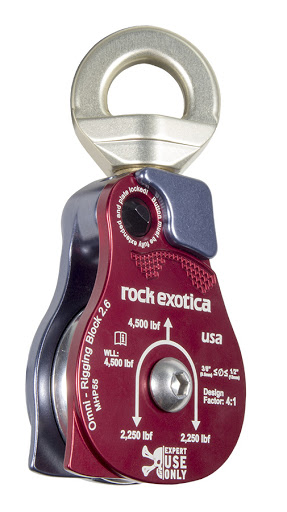

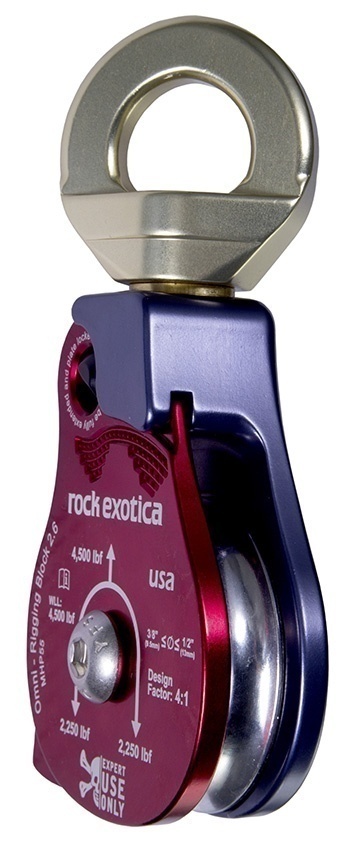

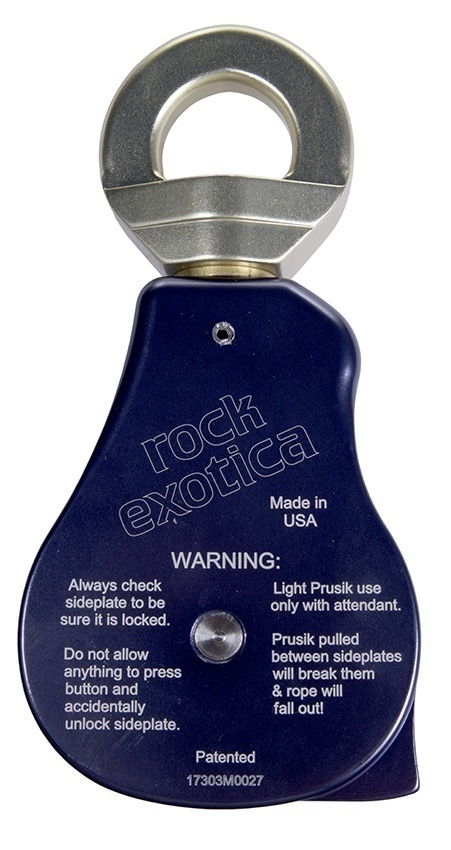

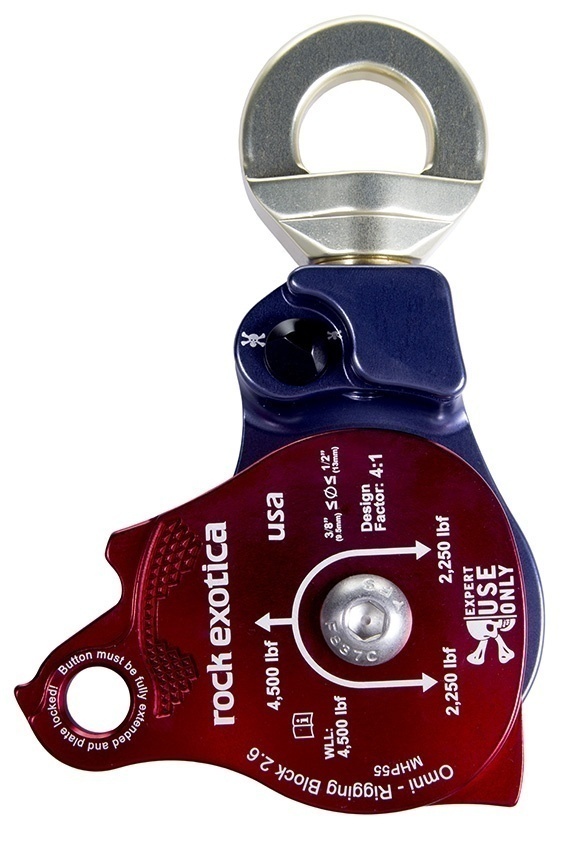

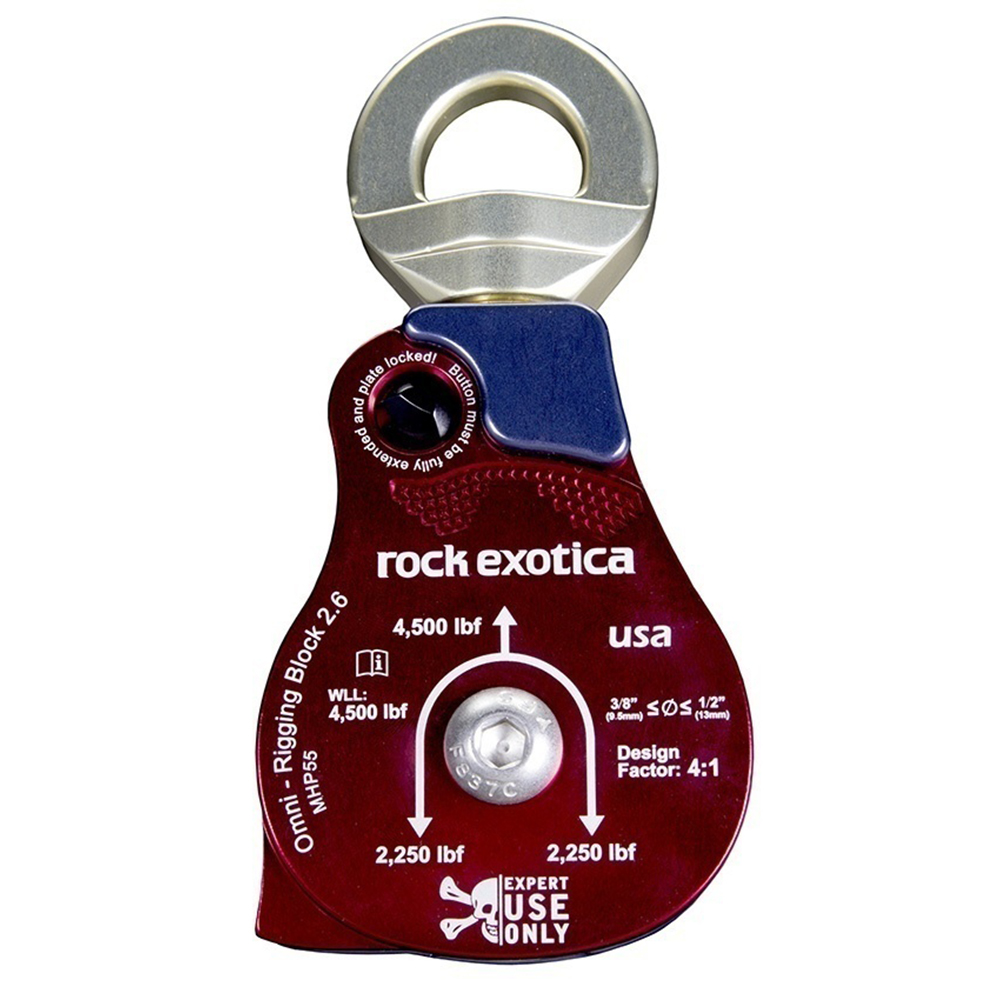

Rock Exotica's Material Handling Block features a red side plate to easily differentiate it from the Rock Exotica P55 Omni Block Pulley. This rigging block offers a Working Load Limit of 4,500 lbs. The integrated swivel allows the block to orient while reducing gain during lifting and rigging applications. The rope can be installed and removed with one hand, all while remaining connected to the anchor. The side plate locks with a two-stage, double-catch mechanism for safety. 3/8" -1/2" rope can be used with the Rock Exotica Material Handling block.

Specifications:

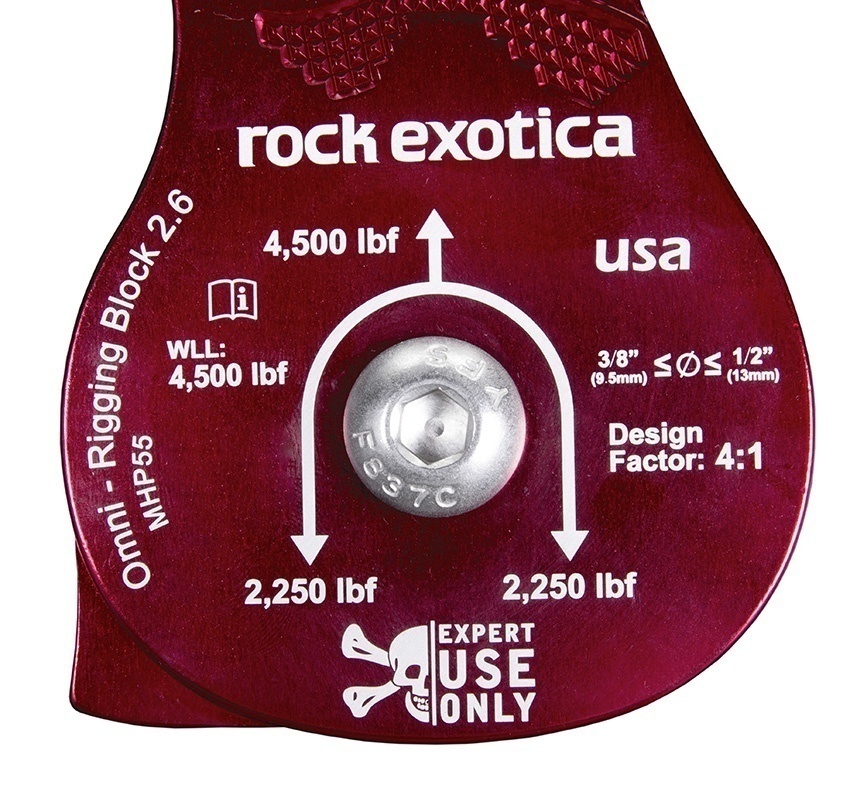

  • WLL: 4,500 lbf
  • Design Factor: 4:1
  • Max Rope Diameter: 1/2"
  • Min Rope Diameter: 3/8"
  • Block Sheave Diameter: 2.6”
  • Standard: ASME B30
More Information
SKU RX-MHP55
Manufacturer Rock Exotica
Manufacturer Model MHP55
